Connect & Access across separate LAN Subnets in 2 Suites in a building?

[crashnburn]

Connect & Access across separate LAN Subnets in 2 Suites in a building?

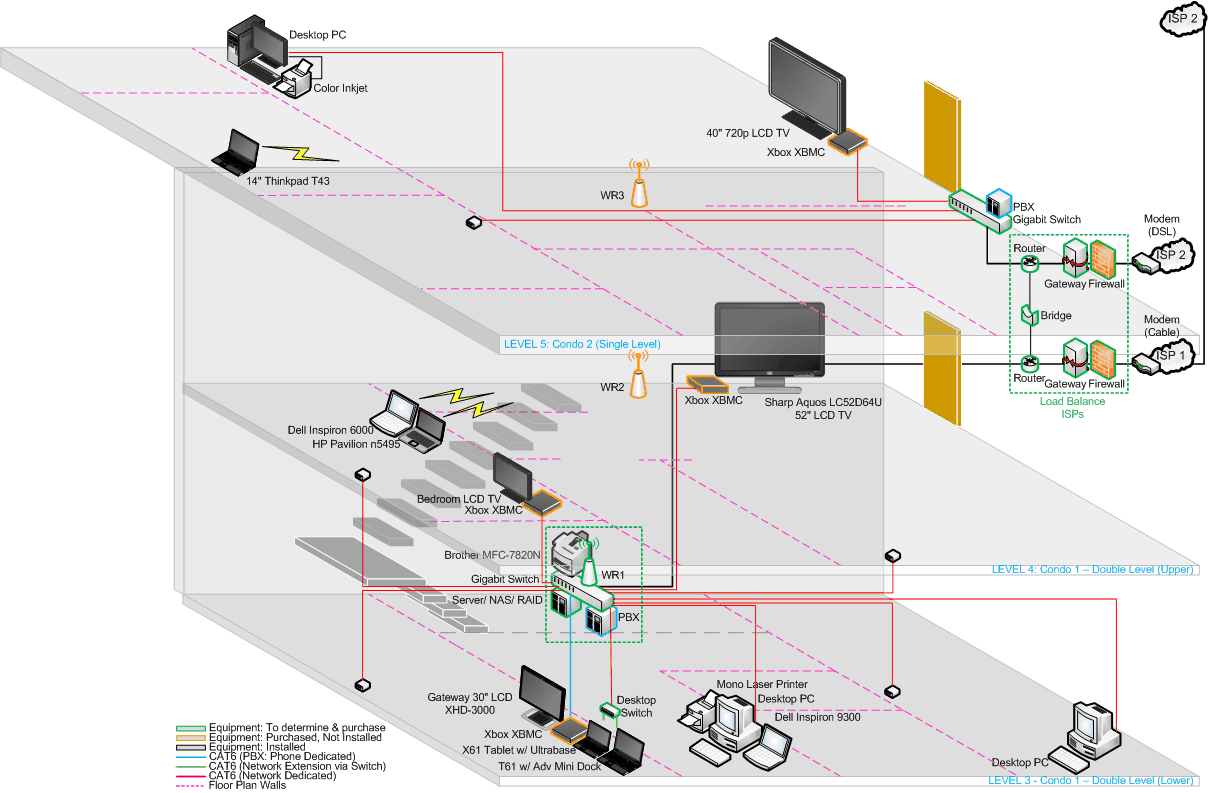

Following is an older diagram of a 2+1 level Small Business/ Startup + Co-working space, with recent expansion & need for integration.



The following changes & information have been outlined:

2 CAT6 Networks/ LANs:

• Level 3 & 4 LAN is integrated & maps off a Central Area (Green Area); which has the NAS

  • ISP---WR1: Asus RT-N16 N Router w Tomato USB FW + HP ProCurve 24 GigE Managed SW + ... N/W Clients
  • Considering adding a PfSense/ Sophos box around here in the future
• Level 5 is a separate; a simpler & sparser LAN; recent expansion and sub-let

  • ISP---WR3: Netgear or D-Link Wireless N Router + ... N/W Clients

Each of the above units have their own ISP with their own Data Cap limits

• The Stuff in Green box to the upper right titled 'Load Balance ISPs' does not exist; It was the original plan that was never implemented


• We plan to run CAT6 cable between Level 4 & 5, outside the building and maybe add some more cables + terminations, and maybe a Hub/ Switch inside Level 5 - This is open/ flexible for now


• We need to connect & give access to NAS & maybe MFC/ Printer/ Scanner from Level 6 LAN


2 possible connection & usage scenarios pop up in my head:

• Option A: Level 5 clients have Limited access purely to NAS & MFC; not be able to use Level 4 ISP Bandwidth
• Option B: Level 5 & 4 clients be able to share/ switch over/ bond ISPs in some fashion?

Key Question:
With Option A constraints, How can we Connect/ access across separate LAN Subnets in 2 Suites in a building?

• Network Partitioning
• Addressing
• Physical Connections & Hardware
• SubNets/ VLANs?



[abailey]

Your diagram and description are a little hard to read and understand. Based on what I think your asking here is what I would do in your situation. I would put in a Layer3 switch (routing switch), probably where your Procurve switch is now. Either replace the Procurve and move the Procurve up to level 5, or put in a small Layer3 switch in the location with the Procurve. I would then break your network up into at least 3 VLANs and Subnets. One Subnet for Level 3&4, Subnet for level 5, and subnet for shared resources like NAS and MFC. Then you can have the switch route between Level 3/4 subnet and shared resource subnet as well as between level5 subnet and shared resource subnet, but not between level 3/4 and level5 subnets.



[coxhaus]

I like abailey's explanation. The only thing I am finding with these smaller layer 3 switches is you can not control default gateway or default routing. Using 2 separate routers is going to require 2 separate layer 3 switches. If you want to load balance then you will need layer 3 switches with controllable default gateway or default routing something like policy routing, protocol routing, or etc. Build a VLAN between the 2 layer 3 switches for control of the networking, load balancing, or just fail over ISP your choice.

I guess I should add using a Cisco SG300 switch would require 2 layer 3 switches because 2 routers with a VLAN in between them to control shared resources with ACLs. No load balancing only manual failover.

I am not sure of the capability of the SG500 or SG500X. It would be nice to know.

Otherwise you would need a real Cisco IOS layer 3 switch. I am not up with latest layer 3
switches as it has 10 years since I was a Cisco hack.


My explanation is only if you are trying to achieve load balancing, failover to solve the initial problem issue using 2 routers for gateways with layer 3 switches. You could use a router for VLAN routing but you are talking millisecond response and a layer 3 switch is nanosecond response so there is big difference in performance routing packets.



[crashnburn]

I like the idea of 3 subnets, but why do I need Layer 3 switches and the cost to go with that?

I'd like the 2 LANs to continue as before with their respective ISPs and Data Caps.

I just wish "Create a Secured link over CAT6" that allows access only to NAS and maybe MFC.

For now I am not looking to do any Load Balancing or ISP sharing.. as mentioned in Option B.



[coxhaus]

Use a VLAN between the 2 routers and use ACLs to control the flow. Routers are just much slower than layer 3 switches.

I would rather use a layer 3 switch or switches.

You may be able to use a routing protocol like RIPv2 between the 2 routers. If it makes it simpler I would use it otherwise I would use static maps.

Map it out on a white board with IP addresses and ACLs before you make any changes just to make sure it will do everything you need.

PS
I don't know if it makes sense to add your NAS and stuff to the VLAN between the routers.
There are some Apple functions which seem to only work in one network. I also always assign a network to every VLAN I create. So when I say a VLAN between routers I mean a network VLAN.



[abailey]

I like the idea of 3 subnets, but why do I need Layer 3 switches and the cost to go with that?

I'd like the 2 LANs to continue as before with their respective ISPs and Data Caps.

I just wish "Create a Secured link over CAT6" that allows access only to NAS and maybe MFC.

For now I am not looking to do any Load Balancing or ISP sharing.. as mentioned in Option B.

You have to have a router of some type to enable communication between the VLANs (if you are using a different subnet for each VLAN). You could make it work with just a layer 2 switch if all your VLANs were in the same subnet but I would strongly urge against that type of design.



[coxhaus]

Work at layer 3. It is much better in the long run.



[crashnburn]

Just curious - What would be the cheapest Layer 3 switch/ router on the market?

Its not a choice of layer 2 or 3. Its a choice of Dollar for an SMB/ Startup right now.

Currently for equipment we have:
L3 - WR1: Asus RT N-16 / Tomato USB Fw + HP ProCurve GigE Managed Switch
L4 - WR2: TP link TL WR 740N / Stock Fw/ But is DD-WRT compatible - Only being used as a Wireless AP/ WAP.
L5 - WR3: D-link DIR 816 / Stock Fw & Use / Curious if hackable with Fw?

Except fpr WR3 - I think all of the above are VLAN capable.

We can easily swap WR2 & WR3 if needed for better Router-to-Router link. Then I think we won't need an extra box?
