Asus Lyra AC220 setup?

  • ATTENTION! As of November 1, 2020, you are not able to reply to threads 6 months after the thread is opened if there are more than 500 posts in the thread.
    Threads will not be locked, so posts may still be edited by their authors.
    Just start a new thread on the topic to post if you get an error message when trying to reply to a thread.

Courage

New Around Here
Hello!

So, my setup is like this:

1. I have an ISP modem (PPPoE), that also acts as a DHCP.
2. I have 2 Lyra AC2200 that I want to be connected via ethernet cable, each to the same switch (classic AP mode + WIFI transition).

Modem -> Switch > 3 Lyra AP's

What settings should I use?

Thank you


OzarkEdge

Part of the Furniture
Hello!

So, my setup is like this:

1. I have an ISP modem (PPPoE), that also acts as a DHCP.
2. I have 2 Lyra AC2200 that I want to be connected via ethernet cable, each to the same switch (classic AP mode + WIFI transition).

Modem -> Switch > 3 Lyra AP's

What settings should I use?

Thank you

Assuming the modem is your router and the Lyra's do AiMesh, I believe your options are wired/wireless AiMesh in AP Mode (wired AiMesh AP + wired/wireless AiMesh nodes); or, 3 wired APs. AiMesh may not like the switch.

This FAQ might help [AiMesh] How to set up ASUS AiMesh or ZenWiFi Mesh Ethernet backhaul under different conditions ? (Advanced setup with network switch) | Official Support | ASUS Global

OE


Courage

New Around Here
I'll try, but from What I see, Lyra does not have so many options.
I've tied AP Mode and for some strange reason, WIFI was gone but enabled in the interface.


OzarkEdge

Part of the Furniture

Courage

New Around Here
I've reset all to default and put the newest firmware:
3.0.0.4.384.46630 2021/05/14

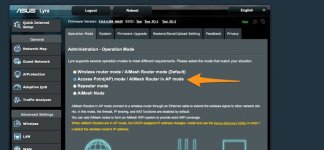

So, with older, beta FW (
9.0.0.4.384_46629 BETA 2021/02/05 ), I got this:



With the newest fw ( 3.0.0.4.384.46630 - 2021/05/14) I got this:



OzarkEdge

Part of the Furniture
I've reset all to default and put the newest firmware:
3.0.0.4.384.46630 2021/05/14

So, with older, beta FW (
9.0.0.4.384_46629 BETA 2021/02/05 ), I got this:

View attachment 36494


With the newest fw ( 3.0.0.4.384.46630 - 2021/05/14) I got this:

View attachment 36495

Be sure to reset the firmware after you install it.

Your pic suggests a webUI tab is missing from your build.

OE
