ASUS RT-AX86U RT-AX88U 2048MB 2GB RAM

chavo

Regular Contributor
made 2GB of RAM.

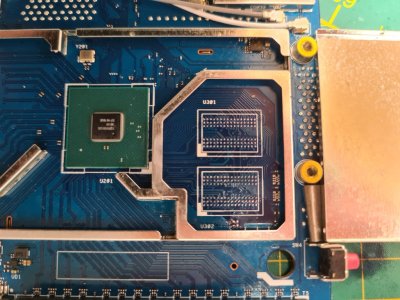

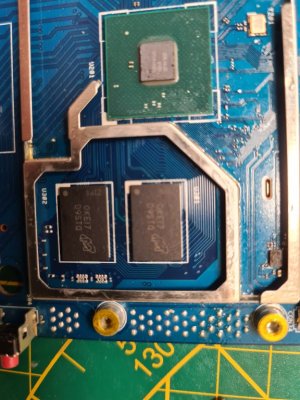

1) you need to replace 2 memory chips with DDR3 800 11-11-11
(DDR3L DRAM 8G, 1.35V, DDR3L, 512Mx16, 1600MT/s @ 11-11-11, 96-ball )
for example
MT41K512M16HA-107:A
MT41K512M16HA-125:A
IS43TR16K01S2AL-125KBLI (it is 2GB but works)

chips on taobao - https://item.taobao.com/item.htm?id=613596877778
on ali https://aliexpress.ru/item/32983556319.html
Screenshot from 2022-07-03 11-27-22.png


2) flash the modified firmware (editing mdtblock - the router will become a brick)
Screenshot from 2022-07-03 11-28-28.png


How to change another firmware so that 2GB works?

You need to compile the firmware, but before that change cfe
27150400000000004A01 replace with 27160400000000004A01
Code:
  cd ~/asuswrt-merlin.ng/release/src-rt-5.02L.07p2axhnd/targets/cfe/sysdeps/RT-AX86U
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x4A\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x4A\x01/g' cfe4908.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x4A\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x4A\x01/g' cfe4908ram.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x4A\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x4A\x01/g' cfe4908rom.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x4A\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x4A\x01/g' precfe4908rom.bin

PS here on the RT-AC86U router https://www.snbforums.com/threads/rt-ac86u-1024mb-ram-support.69877/
PS0 4GB will not work
PS1 echo 70 > /proc/sys/vm/overcommit_ratio so that programs use more memory

md5: b61ddd0062090b2749a2f877dd35e960

Full memory dump
md5: 1a8029858ff127e4e34425afb9fb8a59

Last edited:

chavo

Regular Contributor

ASUS RT-AX88U 2048MB 2GB RAM​

md5: e1827d1fae9add50f94ccfb06f15fa35

Full memory dump
md5: a66e8e9e6ae27942efedcae6d1c94039

How to change another firmware so that 2GB works?

You need to compile the firmware, but before that change cfe
27150400000000003B01 replace with 27160400000000003B01
Code:
  cd ~/asuswrt-merlin.ng/release/src-rt-5.02axhnd/targets/cfe/sysdeps/RT-AX88U
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x3B\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x3B\x01/g' cfe4908.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x3B\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x3B\x01/g' cfe4908ram.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x3B\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x3B\x01/g' cfe4908rom.bin
  sed -i 's/\x27\x15\x04\x00\x00\x00\x00\x00\x3B\x01/\x27\x16\x04\x00\x00\x00\x00\x00\x3B\x01/g' precfe4908rom.bin

Last edited:

Compyfreak

New Around Here
This is exactly what I want for my mini NAS build. Can this be done by altering the official firmware? Or do I need to use Merlin? Thanks!


Tech9

Part of the Furniture
See the Spoiler in post # 1.


chavo

Regular Contributor
I did check the spoiler, I see a reference to the Merlin firmware, but I don't know if that's because OP likes Merlin or that it isn't possible to alter the original firmware.
modification of bytes in the firmware, not a fact that will help
modify cfe + compilation = work
Merlin's firmware contains information on the memory configuration for each router
in fact, modifying the cfe is a modification of the memory configuration for this router
