AX3000v2 cant find lan port ids in cli

kakashisensei

New Around Here
I am running gnuton fork of asusmerlin on my AX3000v2 (AX58v2) in AP mode with AI mesh nodes attached. I have an issue where one lan port degrades from 1gb to 100mb randomly. I can't change the wire or other stuff that might be causing it. I rather just have a script monitor it and reset the connection, like this one.

However, I am having difficulty identifying any of the lan port devices in cli. This is what I get when I do brctl.
Code:
AX3000_MAIN:/# brctl show
bridge name     bridge id               STP enabled     interfaces
br0             8000.08bfb852c258       no              eth0
                                                        eth1
                                                        eth2
                                                        eth3

Eth0 is wan. I suspect Eth1 is wifi. I am not sure what eth2 or eth3 are. Ethctl does not pull up anything on Eth2 or Eth3, giving me a ioctl SIOCGQUERYNUMPORTS error, even when I specify a subport. I have tried all ethctl commands on eth2 and eth3 including powering down, but it just returns errors or SIOCGQUERYNUMPORTS error.

I suspect the lan ports are under br0, but none of the ethctl commands work with it.

Does anyone have experience with this or some pointers? Much appreciated.

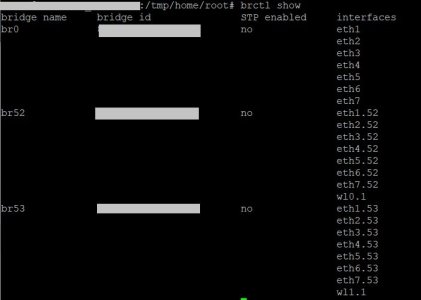

Generally the eth0-eth3 are your connected WAN/LAN ports and the WiFi. The guest network wireless should show up as wl0.1, wl1.1, and so on. Attached is an example of what is shown on a RT-AX86U Pro running stock 3006.102.x firmware.

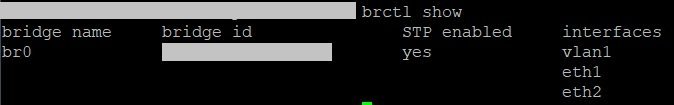

Edit to add: And an example of what it looks like on a RT-AC68U running latest Asus-Merlin with guest wifi disabled.
Also try using ethtool if using the Gnuton ported Asus-Merlin 388 firmware on the router to see what it returns for each eth entry. Might provide more information about each port/interface.


Attachments

  • rtax86upro_brctl_show.jpg
    29.4 KB · Views: 12
  • rtac68u_brctl_show.jpg
    10.2 KB · Views: 11
Last edited:
These are my results with ethtool. Returns no data for eth2 and eht3. For eth1, its 2500mbps, but this router doesn't have 2.5gb ports. Even when I did ethctl eth1 phy-power down, it didnt do anything. Lan ports, wifi still work. Nothing shows up in syslog. This router just seems different. Maybe I'll just try putting a dumbswitch in between on the problematic connection.

Code:
AX3000_MAIN:/tmp/home/root# ethtool eth0
Settings for eth0:
        Supported ports: [ TP ]
        Supported link modes:   10baseT/Half 10baseT/Full
                                100baseT/Half 100baseT/Full
                                1000baseT/Half 1000baseT/Full
        Supported pause frame use: Symmetric Receive-only
        Supports auto-negotiation: Yes
        Supported FEC modes: Not reported
        Advertised link modes:  10baseT/Half 10baseT/Full
                                100baseT/Half 100baseT/Full
                                1000baseT/Half 1000baseT/Full
        Advertised pause frame use: Symmetric
        Advertised auto-negotiation: Yes
        Advertised FEC modes: Not reported
        Speed: Unknown!
        Duplex: Half
        Port: Twisted Pair
        PHYAD: 8
        Transceiver: internal
        Auto-negotiation: on
        MDI-X: Unknown
        Link detected: no

AX3000_MAIN:/tmp/home/root# ethtool eth1
Settings for eth1:
        Supported ports: [ TP ]
        Supported link modes:   2500baseT/Full
        Supported pause frame use: Symmetric Receive-only
        Supports auto-negotiation: Yes
        Supported FEC modes: Not reported
        Advertised link modes:  2500baseT/Full
        Advertised pause frame use: No
        Advertised auto-negotiation: No
        Advertised FEC modes: Not reported
        Speed: 2500Mb/s
        Duplex: Full
        Port: Twisted Pair
        PHYAD: 6
        Transceiver: internal
        Auto-negotiation: off
        MDI-X: Unknown
        Link detected: yes

AX3000_MAIN:/tmp/home/root# ethtool eth2
Settings for eth2:
No data available

AX3000_MAIN:/tmp/home/root# ethtool eth3
Settings for eth3:
No data available
