How to forward ports? GT-AXE16000

  • SNBForums Code of Conduct

    SNBForums is a community for everyone, no matter what their level of experience.

    Please be tolerant and patient of others, especially newcomers. We are all here to share and learn!

    The rules are simple: Be patient, be nice, be helpful or be gone!

Riptide

Regular Contributor
This may seem to be a really basic question but I'm having some odd behavior on a client where I don't see expected incoming connections from a port that I've opened up for an app.

What is the correct process to open and forward a port from the router?

What I have done is:
WAN->Virtual Server/Port Forwarding -> Basic Config -> ON
WAN->Virtual Server/Port Forwarding -> Port Forwarding List -> Add profile

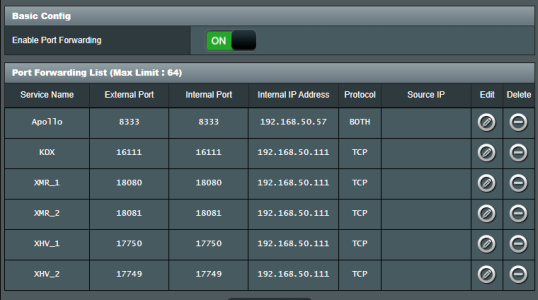

See attached photo. Is there anything else that should need to be done here? And if confirmation needed, I'm running some cryptocurrency nodes on this client and those are the required ports needed. I wasn't sure if the 'Internal Port' needed to be specified for this to work.

Just need to make sure I haven't missed a step on the router side here and that it should be expected to forward the traffic. Thanks!


Attachments

  • ports.PNG
    33.9 KB · Views: 91
That looks correct. You can either specify the 'Internal Port' or leave it empty if it's the same as the external port, both ways should work.

EDIT: Check the rules at System Log - Port Forwarding.

Last edited:
@Riptide @ColinTaylor and I worked through a similar issue in this Post. Perhaps, it will help guide you through your problem.

So what this turned out to be was a mistake on my side at the client. Long story short, I'm running a Monero (XMR) and a Haven (XHV) node on my client. I had everything forwarded correctly at the router. What was wrong were my rules on the windows firewall side. I noticed this morning my Monero node was accepting incoming connections but the Haven node was not. This seemed to point to the client which prompted investigation at the windows defender rules.

Apparently, it didn't like how I formatted the ports in the rule. Once I resolved that issue, away we went.

Feel like an idiot wasting so much time on that last night when all I had to do was shut off the windows firewall on the client and that test would've narrowed things down in a huge hurry.
