modmon modmon - WebUI for monitoring Virgin Hub 3 cable modem stats

  • ATTENTION! You'll notice a Prefix dropdown when you create a thread. If your post applies to one of the topics listed, please use that Prefix for your post. When browsing the thread list you can use the Prefix to filter the view.
  • ATTENTION! As of November 1, 2020, you are not able to reply to threads 6 months after the thread is opened if there are more than 500 posts in the thread.
    Threads will not be locked, so posts may still be edited by their authors.
    Just start a new thread on the topic to post if you get an error message when trying to reply to a thread.

Would graphing Virgin Media Superhub 3 stats from Merlin be useful for you?

  • Yes

    Votes: 13 86.7%
  • No

    Votes: 2 13.3%

  • Total voters
    15
  • Poll closed .

Jack Yaz

Part of the Furniture
v1.1.1
Updated 2020-12-01

modmon is a tool that tracks your cable modem's stats (such as signal power levels) for AsusWRT Merlin with charts for daily, weekly and monthly summaries.

Currently only the Virgin Media Hub 3.0 is supported.

modmon is free to use under the GNU General Public License version 3 (GPL 3.0).

This project is hosted on GitHub

Love the script and want to support future development? Any and all donations gratefully received!
PayPal donation
Buy me a coffee

Requirements
Requires Entware (therefore attached USB)

Supported firmware versions
You must be running firmware Merlin 384.15/384.13_4 or Fork 43E5 (or later) Asuswrt-Merlin

Installation
Using your preferred SSH client/terminal, copy and paste the following command, then press Enter:
Code:
/usr/sbin/curl --retry 3 "https://raw.githubusercontent.com/jackyaz/modmon/master/modmon.sh" -o "/jffs/scripts/modmon" && chmod 0755 /jffs/scripts/modmon && /jffs/scripts/modmon install
Usage
WebUI

modmon can be configured via the WebUI, in the Addons section.

Command Line
To launch the modmon menu after installation, use:
Code:
modmon
If this does not work, you will need to use the full path:
Code:
/jffs/scripts/modmon
Is my X brand modem supported?

The requirements are that your modem exposes the relevant raw data (e.g. SNMP OIDs) for the channel stats etc. behind an unauthenticated page. For example, Virgin Hub 3 hosts this at http://192.168.100.1/getRouterStatus

The output needs to look similar to the below snippet:
Code:
{"1.3.6.1.4.1.4115.1.3.4.1.5.9.0":"10",
"1.3.6.1.4.1.4115.1.3.3.1.1.1.3.1.0":"1",
"1.3.6.1.4.1.4491.2.1.14.1.5.4.0":"1",
"1.3.6.1.2.1.10.127.1.1.5.0":"4",
"1.3.6.1.2.1.126.1.1.1.1.1.2":"1",
"1.3.6.1.2.1.69.1.4.5.0":"yewrkldJKDHSUBsgvca69834ncxv9873254",
"1.3.6.1.2.1.10.127.1.1.4.1.3.1":"7776476",
"1.3.6.1.2.1.10.127.1.1.4.1.4.1":"0",
"1.3.6.1.2.1.10.127.1.1.4.1.5.1":"376",
"1.3.6.1.4.1.4491.2.1.20.1.24.1.1.1":"376",
"1.3.6.1.2.1.10.127.1.1.4.1.3.2":"1791416",
"1.3.6.1.2.1.10.127.1.1.4.1.4.2":"0",
"1.3.6.1.2.1.10.127.1.1.4.1.5.2":"386",
"1.3.6.1.4.1.4491.2.1.20.1.24.1.1.2":"386",
"1.3.6.1.2.1.10.127.1.1.4.1.3.3":"1713067",
"1.3.6.1.2.1.10.127.1.1.4.1.4.3":"0",
"1.3.6.1.2.1.10.127.1.1.4.1.5.3":"389",
"1.3.6.1.4.1.4491.2.1.20.1.24.1.1.3":"389",
"1.3.6.1.2.1.10.127.1.1.4.1.3.4":"1669590",
"1.3.6.1.2.1.10.127.1.1.4.1.4.4":"0",
"1.3.6.1.2.1.10.127.1.1.4.1.5.4":"389",
"1.3.6.1.4.1.4491.2.1.20.1.24.1.1.4":"389",
"1.3.6.1.2.1.10.127.1.1.4.1.3.5":"1700259",
"1.3.6.1.2.1.10.127.1.1.4.1.4.5":"0",

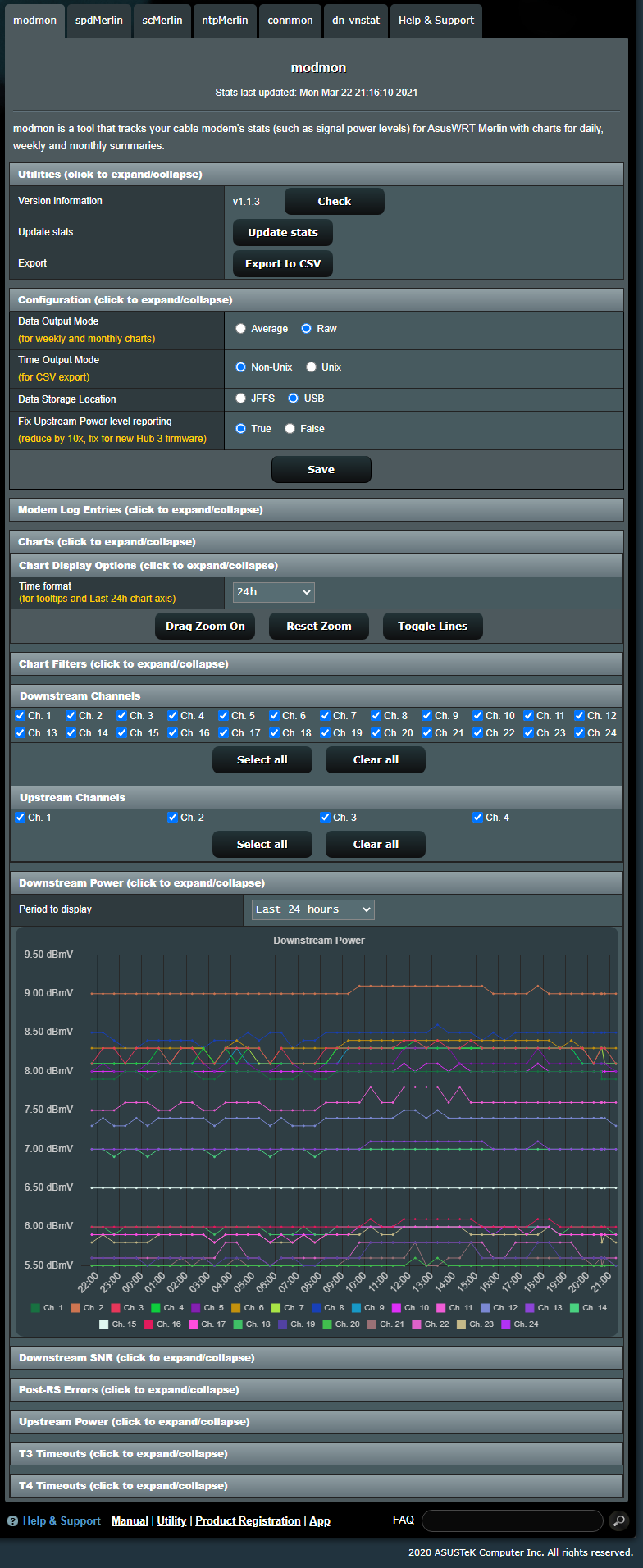

Screenshots

Last edited:

no_name

Regular Contributor
If you have enough interest I would be happy to have a play and view stats on my Virgin Media Superhub 3


Sent from my iPad using Tapatalk


DiscoSi

New Around Here
Hi, about to Pm you my output, looks Json to me. From a Virgin superhub 3.


Sonyrolfy

Regular Contributor
Looks similar to the VM page. Does the URL i linked give a json style output?
I can make a text overview if you like?

BTW, I'm in bridge modus and router in VPN, so to get the output I had to loose the router in vpn mode. Does it mean I wont able to see your great project in webui when im in vpn/router,mode?


Jack Yaz

Part of the Furniture
I can make a text overview if you like?

BTW, I'm in bridge modus and router in VPN, so to get the output I had to loose the router in vpn mode. Does it mean I wont able to see your great project in webui when im in vpn/router,mode?
Are you using policy rules for Redirect Internet?
