RTAX88U drops all connections when binding any mac address to static IP

[Jaakko Hyvärinen]

Hi Guys,

I bought AX88U yesterday to replace broken dsl-AC88U router. AX88U behaves weirdly when i am trying to bind any client mac address to static ip. After hitting apply - the router will drop WAN connection and 2.4 + 5ghz WIFI connections also. Router must be re-booted it in order to get WAN connection working again. It does the same if I configure DNS server addresses explicitly. I am using latest ASUS firmware - i upgraded firmware during initial set up. Is this known issue in firmware or maybe some hardware related problem? Attached log has mcast related errors - are they normal?

5 01:09:03 kernel: ^[[0;33;41m[ERROR mcast] bcm_mcast_netlink_process_snoop_cfg,884: interface 22 could not be found^[[0m

Jaakko



[L&LD]

Did you do a full reset to factory defaults including checking the 'Initialize all settings...' checkbox too, after flashing the latest RMerlin firmware?

Did you import any saved config files? Did you 'blindly' copy your old settings from the other router to the new one?

Are your running the just-released RMerlin firmware 384.16_0 on the router?



[dosborne]

I am using latest ASUS firmware

Please be specific about versions. What is "latest" today may not be tomorrow and there are alphas, betas, .....

I am not experiencing these issues with my AX88U. 384.15 fw



[Jaakko Hyvärinen]

Firmware version is 3.0.0.4.384.8018



[sanke1]

Firmware version is 3.0.0.4.384.8018

Last 3 firmwares have this issue and are borked.



[cooloutac]

i get similar issue when setting static ip on my ax58u.

Dec 27 12:25:32 kernel: ^[[0;33;41m[ERROR mcast] bcm_mcast_netlink_process_snoop_cfg,926: interface 20 could not be found^[[0m

Dec 27 12:25:19 rc_service: httpds 1430:notify_rc restart_net_and_phy
Dec 27 12:25:21 iTunes: daemon is stoped
Dec 27 12:25:21 FTP Server: daemon is stoped
Dec 27 12:25:21 Samba Server: smb daemon is stoped
Dec 27 12:25:22 kernel: wl0: set timeout 5 secs to wait dev reg finish
Dec 27 12:25:24 kernel: wl0: set timeout 5 secs to wait dev reg finish
Dec 27 12:25:29 nat: apply nat rules (/tmp/nat_rules_eth4_eth4)
Dec 27 12:25:29 kernel: port_generic_stop 561 skip turnning off power on eth3 here
Dec 27 12:25:29 kernel: port_generic_stop 561 skip turnning off power on eth2 here
Dec 27 12:25:29 kernel: port_generic_stop 561 skip turnning off power on eth1 here
Dec 27 12:25:29 kernel: port_generic_stop 561 skip turnning off power on eth0 here
Dec 27 12:25:29 kernel: ubi2: attaching mtd10
Dec 27 12:25:29 kernel: ubi2: scanning is finished
Dec 27 12:25:29 kernel: ubi2: attached mtd10 (name "misc1", size 8 MiB)
Dec 27 12:25:29 kernel: ubi2: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
Dec 27 12:25:29 kernel: ubi2: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
Dec 27 12:25:29 kernel: ubi2: VID header offset: 2048 (aligned 2048), data offset: 4096
Dec 27 12:25:29 kernel: ubi2: good PEBs: 64, bad PEBs: 0, corrupted PEBs: 0
Dec 27 12:25:29 kernel: ubi2: user volume: 1, internal volumes: 1, max. volumes count: 128
Dec 27 12:25:29 kernel: ubi2: max/mean erase counter: 10/4, WL threshold: 4096, image sequence number: 1108767370
Dec 27 12:25:29 kernel: ubi2: available PEBs: 0, total reserved PEBs: 64, PEBs reserved for bad PEB handling: 4
Dec 27 12:25:29 kernel: ubi2: background thread "ubi_bgt2d" started, PID 24942
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): background thread "ubifs_bgt2_0" started, PID 24958
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): UBIFS: mounted UBI device 2, volume 0, name "nvram"
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): FS size: 5840896 bytes (5 MiB, 46 LEBs), journal size 1396736 bytes (1 MiB, 11 LEBs)
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): reserved for root: 0 bytes (0 KiB)
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): media format: w4/r0 (latest is w4/r0), UUID AF9E64C7-2546-4160-94B7-C0D3AFA3E6D3, small LPT model
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): un-mount UBI device 2
Dec 27 12:25:30 kernel: UBIFS (ubi2:0): background thread "ubifs_bgt2_0" stops
Dec 27 12:25:30 kernel: ubi2: detaching mtd10
Dec 27 12:25:30 kernel: ubi2: mtd10 is detached
Dec 27 12:25:32 watchdog: restart httpd
Dec 27 12:25:32 rc_service: watchdog 1440:notify_rc stop_httpd
Dec 27 12:25:32 rc_service: waitting "restart_net_and_phy" via ...
Dec 27 12:25:32 kernel: Register interface [wl1.1] MAC: a8:5e:45:ed:de:7d
Dec 27 12:25:32 kernel: Register interface [wl1.2] MAC: a8:5e:45:ed:de:7e
Dec 27 12:25:32 kernel: IGMP Query send failed
Dec 27 12:25:32 kernel: IGMP Query send failed
Dec 27 12:25:32 kernel: CPU: 1 PID: 25029 Comm: networkmap Tainted: P O 4.1.52 #2
Dec 27 12:25:32 kernel: Hardware name: Generic DT based system
Dec 27 12:25:32 kernel: task: d5045000 ti: d366a000 task.ti: d366a000
Dec 27 12:25:32 kernel: PC is at 0x174c4
Dec 27 12:25:32 kernel: LR is at 0xb6d9dab0
Dec 27 12:25:32 kernel: pc : [<000174c4>] lr : [<b6d9dab0>] psr: 200b0010
Dec 27 12:25:32 kernel: sp : be90ea10 ip : 000001dc fp : 00000001
Dec 27 12:25:32 kernel: r10: 0002da64 r9 : 0002da20 r8 : 00000000
Dec 27 12:25:32 kernel: r7 : 0002da30 r6 : 0002da94 r5 : 0002c000 r4 : 00000000
Dec 27 12:25:32 kernel: r3 : 0000d22c r2 : 0002da84 r1 : 0000d32b r0 : 0000000a
Dec 27 12:25:32 kernel: Flags: nzCv IRQs on FIQs on Mode USER_32 ISA ARM Segment user
Dec 27 12:25:32 kernel: Control: 10c5387d Table: 1329004a DAC: 00000015
Dec 27 12:25:32 kernel: CPU: 1 PID: 25029 Comm: networkmap Tainted: P O 4.1.52 #2
Dec 27 12:25:32 kernel: Hardware name: Generic DT based system
Dec 27 12:25:32 kernel: [<c0026e60>] (unwind_backtrace) from [<c0022c38>] (show_stack+0x10/0x14)
Dec 27 12:25:32 kernel: [<c0022c38>] (show_stack) from [<c0445b3c>] (dump_stack+0x8c/0xa0)
Dec 27 12:25:32 kernel: [<c0445b3c>] (dump_stack) from [<c003aab0>] (get_signal+0x490/0x558)
Dec 27 12:25:32 kernel: [<c003aab0>] (get_signal) from [<c00221d0>] (do_signal+0xc8/0x3ac)
Dec 27 12:25:32 kernel: [<c00221d0>] (do_signal) from [<c0022658>] (do_work_pending+0x94/0xa4)
Dec 27 12:25:32 kernel: [<c0022658>] (do_work_pending) from [<c001f4cc>] (work_pending+0xc/0x20)
Dec 27 12:25:33 nat: apply redirect rules
Dec 27 12:25:34 avahi-daemon[25135]: WARNING: No NSS support for mDNS detected, consider installing nss-mdns!
Dec 27 12:25:35 avahi-daemon[25135]: Alias name "RT-AX58U" successfully established.
Dec 27 12:25:35 acsd: acsd_main_loop(1097): sync_id: 8095, status:1, misc.error/abort
Dec 27 12:25:35 acsd: eth5: selected channel spec: 0x1907 (9u)
Dec 27 12:25:35 acsd: eth5: Adjusted channel spec: 0x1907 (9u)
Dec 27 12:25:35 acsd: eth5: selected channel spec: 0x1907 (9u)
Dec 27 12:25:35 acsd: acs_set_chspec: 0x1907 (9u) for reason APCS_INIT
Dec 27 12:25:35 acsd: eth6: Selecting 5g band ACS policy
Dec 27 12:25:35 acsd: acsd_main_loop(1097): sync_id: 8095, status:1, misc.error/abort
Dec 27 12:25:35 nat: apply nat rules (/tmp/nat_rules_eth4_eth4)
Dec 27 12:25:35 acsd: acs_candidate_score_intf(992): eth6: intf check failed for chanspec: 0xe832
Dec 27 12:25:35 acsd: acs_candidate_score_bgnoise(1312): eth6: bgnoise check failed for chanspec: 0xe832
Dec 27 12:25:35 acsd: acs_candidate_score_txop(1563): eth6: txop check failed for chanspec: 0xe832
Dec 27 12:25:35 acsd: acs_candidate_score_intf(992): eth6: intf check failed for chanspec: 0xe932
Dec 27 12:25:35 acsd: acs_candidate_score_bgnoise(1312): eth6: bgnoise check failed for chanspec: 0xe932
Dec 27 12:25:35 acsd: acs_candidate_score_txop(1563): eth6: txop check failed for chanspec: 0xe932
Dec 27 12:25:35 acsd: acs_candidate_score_intf(992): eth6: intf check failed for chanspec: 0xea32
Dec 27 12:25:35 acsd: acs_candidate_score_bgnoise(1312): eth6: bgnoise check failed for chanspec: 0xea32
Dec 27 12:25:35 acsd: acs_candidate_score_txop(1563): eth6: txop check failed for chanspec: 0xea32
Dec 27 12:25:35 acsd: acs_candidate_score_intf(992): eth6: intf check failed for chanspec: 0xeb32
Dec 27 12:25:35 acsd: acs_candidate_score_bgnoise(1312): eth6: bgnoise check failed for chanspec: 0xeb32
Dec 27 12:25:35 acsd: acs_candidate_score_txop(1563): eth6: txop check failed for chanspec: 0xeb32
Dec 27 12:25:35 acsd: eth6: selected channel spec: 0xe832 (36/160)
Dec 27 12:25:35 acsd: eth6: Adjusted channel spec: 0xe832 (36/160)
Dec 27 12:25:35 acsd: eth6: selected channel spec: 0xe832 (36/160)
Dec 27 12:25:35 acsd: acs_set_chspec: 0xe832 (36/160) for reason APCS_INIT
Dec 27 12:25:36 wan: finish adding multi routes
Dec 27 12:25:38 RT-AX58U: start https:8443
Dec 27 12:25:38 RT-AX58U: start httpd:80
Dec 27 12:25:38 httpd: Succeed to init SSL certificate...8443
Dec 27 12:25:38 httpd: Succeed to init SSL certificate...80
Dec 27 12:25:40 wlceventd: wlceventd_proc_event(499): wl0.1: Auth 504:F7:AB:3F:5F, status: Successful (0)
Dec 27 12:25:40 wlceventd: wlceventd_proc_event(527): wl0.1: Assoc 504:F7:AB:3F:5F, status: Successful (0)
Dec 27 12:25:40 rc_service: watchdog 1440:notify_rc start_httpd
Dec 27 12:25:40 RT-AX58U: start https:8443
Dec 27 12:25:40 RT-AX58U: start httpd:80
Dec 27 12:25:40 kernel: The For ALL DEVICES flag of Prof 1 has been set to ENABLE

its possible its normal and the older routers don't log it? no idea. in my case the router doesn't reboot or lose wan.



[santius]

Hi guys,
this forum post is literally the only evidence I found googling about this problem. I have an ASUS RT-AX82U with stock firmware version 3.0.0.4.388_23285
And I am also experiencing this problem. Every time I start a MAC to IP binding process for a device, all connections are dropped and WAN is lost as well. I usually wait up to 5 minutes before losing my patience and rebooting the router, in order to restore everything. I struggled to find any useful information in the log file, though. But I will try again with some tests later. Has anyone found the reason behind this? Or if this has at least been acknowledged by ASUS in some official patch notes?

Thanks



[bbunge]

Hi guys,
this forum post is literally the only evidence I found googling about this problem. I have an ASUS RT-AX82U with stock firmware version 3.0.0.4.388_23285
And I am also experiencing this problem. Every time I start a MAC to IP binding process for a device, all connections are dropped and WAN is lost as well. I usually wait up to 5 minutes before losing my patience and rebooting the router, in order to restore everything. I struggled to find any useful information in the log file, though. But I will try again with some tests later. Has anyone found the reason behind this? Or if this has at least been acknowledged by ASUS in some official patch notes?

Thanks

What you are experiencing is normal when manually assigning an IP address. The solution is to assign a static IP address at the client.



[santius]

What you are experiencing is normal when manually assigning an IP address. The solution is to assign a static IP address at the client.

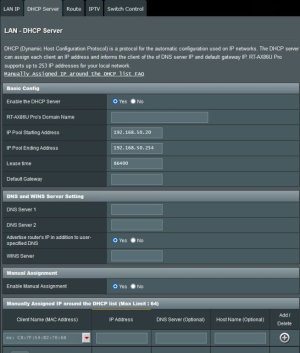

Sorry maybe I was not enough specific. I am not manually assigning an IP address. I am just, as you suggested, trying to make the current IP address a static DHCP lease. Take a look at my example screenshot, what I mean is that the WAN connection gets dropped whenever I activate that 'toggle' indicated by a red arrow in the image.

All in all, I would not even mind that much this happening, if the connection were to be dropped for a few seconds, or even a minute. But the connection does not seem to come back for an uncomfortable amount of time (I usually resort to rebooting the router, which is faster).



[bbunge]

Yes, you were manually assigning an IP address. Static IP addresses are assigned at the client. Manually assigned addresses are assigned by the DHCP server which in this case is the router. The DHCP process has to be restarted each time a client is manually assigned an IP address. See LAN/DHCP Server.
MAC and IP address binding is another way to say manually assigned. Confusing, I know, but the folks who program these things do not stop to think about keeping terms consistent.
