what do each of the interfaces in merlin translate to?

Discussion in 'Asuswrt-Merlin' started by Evan Richardson, Apr 3, 2015.

  1. Evan Richardson

    Evan Richardson New Around Here

    Joined:
    Apr 3, 2015
    Messages:
    2
    I'm trying to set up collectd + grafana + influxdb to monitor my network equipment, but am having a hell of a time figuring out merlin/asus interfaces. I apologize in advance, but I tried searching google and on here and only came up with eth0 being WAN, nothing else.


    I have the following on my RT-AC68U:

    br0
    eth0
    eth1
    eth2
    lo
    tun21 (openvpn)
    vlan1
    vlan2


    Can someone help me figure out which each of these translate to? Since eth0 looks like WAN, what does br0 and the rest translate to?

    Thanks!

  2. mstombs

    mstombs Very Senior Member

    Joined:
    Jul 18, 2012
    Messages:
    530
    br0 is the LAN bridge, eth1 and 2 the wireless interfaces

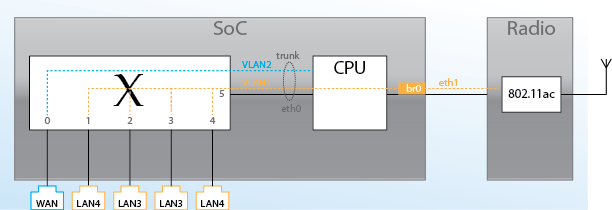

    The 5-external port Ethernet switch is split by use of nvram params and the Broadcom switch driver into vlan1 for 4 LAN ports and vlan2 for the WAN - in Tomato firmware the WAN port is vlan2, but Asus change and access it as eth0 - but naming conventional fails for dual wan using LAN4?

    Normally vlan1, eth1 and eth2 are bridged into br0

    Code:
    [email protected]:/tmp/home/root# brctl show
    bridge name     bridge id               STP enabled     interfaces
    br0             8000.08606ecbfea8       yes             vlan1
                                                            eth1
                                                            eth2
    lo is local loopback, internal to router.
    If you have pppoe wan connection you will also have ppp0 as a virtual wan interface.

  3. Evan Richardson

    Evan Richardson New Around Here

    Joined:
    Apr 3, 2015
    Messages:
    2
    Thanks for the quick reply!

  4. highwire

    highwire Regular Contributor

    Joined:
    Apr 10, 2013
    Messages:
    149
    Location:
    Canada
    The RT-AC87U is different:
    br0
    br0:0
    eth0
    eth1
    lo
    tun21
    vlan1

    [email protected]:/tmp/home/root# brctl show
    bridge name bridge id STP enabled interfaces
    br0 8000.382c4aa16228 yes vlan1
    eth1

  5. amplatfus

    amplatfus Senior Member

    Joined:
    Nov 25, 2016
    Messages:
    215
    Location:
    RO
    Please, so in this case what should be the eth for 5Ghz?

  6. ColinTaylor

    ColinTaylor Part of the Furniture

    Joined:
    Mar 31, 2014
    Messages:
    12,084
    Location:
    UK
    amplatfus likes this.
  7. Putte

    Putte New Around Here

    Joined:
    Jan 11, 2020
    Messages:
    4
  8. netware5

    netware5 Very Senior Member

    Joined:
    Mar 9, 2013
    Messages:
    540
    Location:
    Bulgaria
    I have RT-AX88U and the list is as follows:

    Code:
    ASUSWRT-Merlin RT-AX88U 384.13-0 Wed Jul 31 17:30:47 UTC 2019
    [email protected]:/tmp/home/root# ifconfig -a

    bcmsw     Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:322455530 errors:0 dropped:55883 overruns:0 frame:0
              TX packets:280299416 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:226452940377 (210.9 GiB)  TX bytes:188338681521 (175.4 GiB)

    bcmswlpbk0 Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    br0       Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              inet addr:192.168.77.1  Bcast:192.168.77.255  Mask:255.255.255.0
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:175441181 errors:0 dropped:3516 overruns:0 frame:0
              TX packets:118291725 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:148210195119 (138.0 GiB)  TX bytes:65856114783 (61.3 GiB)

    dpsta     Link encap:Ethernet  HWaddr 00:00:00:00:00:00
              BROADCAST MULTICAST  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    eth0      Link encap:Ethernet  HWaddr 50:46:5D:6B:E5:50
              inet addr:78.90.26.41  Bcast:78.90.26.255  Mask:255.255.255.0
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:152253046 errors:0 dropped:31153238 overruns:0 frame:0
              TX packets:176515073 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:68309292756 (63.6 GiB)  TX bytes:152607909506 (142.1 GiB)

    eth1      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:152571 errors:0 dropped:16 overruns:0 frame:0
              TX packets:303132 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:33208595 (31.6 MiB)  TX bytes:304416108 (290.3 MiB)

    eth2      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:5580 errors:0 dropped:0 overruns:0 frame:0
              TX packets:16328 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:1363646 (1.2 MiB)  TX bytes:2039883 (1.9 MiB)

    eth3      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:149232141 errors:0 dropped:55852 overruns:0 frame:0
              TX packets:73599720 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:155500117742 (144.8 GiB)  TX bytes:18489181694 (17.2 GiB)

    eth4      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:11193 errors:0 dropped:15 overruns:0 frame:0
              TX packets:26714 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:1515055 (1.4 MiB)  TX bytes:31983644 (30.5 MiB)

    eth5      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:262599 errors:0 dropped:42 overruns:0 frame:0
              TX packets:3842011 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:24202005 (23.0 MiB)  TX bytes:1832913752 (1.7 GiB)

    eth6      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:98
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:363 errors:0 dropped:15 overruns:0 frame:0
              TX packets:2667131 errors:0 dropped:3685 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:94696 (92.4 KiB)  TX bytes:261278154 (249.1 MiB)

    eth7      Link encap:Ethernet  HWaddr 0C:9D:92:02:31:9C
              UP BROADCAST RUNNING ALLMULTI MULTICAST  MTU:1500  Metric:1
              RX packets:12396354 errors:0 dropped:15 overruns:0 frame:0
              TX packets:36135935 errors:0 dropped:6242 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:5144466184 (4.7 GiB)  TX bytes:41344814175 (38.5 GiB)

    ifb0      Link encap:Ethernet  HWaddr C6:9E:BB:8F:9F:8D
              BROADCAST NOARP  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:32
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    ifb1      Link encap:Ethernet  HWaddr 12:BE:1A:F0:83:45
              BROADCAST NOARP  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:32
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    imq0      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              NOARP  MTU:16000  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:11000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    imq1      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              NOARP  MTU:16000  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:11000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    imq2      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              NOARP  MTU:16000  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:11000
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    ip6tnl0   Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              NOARP  MTU:1452  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    lo        Link encap:Local Loopback
              inet addr:127.0.0.1  Mask:255.0.0.0
              UP LOOPBACK RUNNING MULTICAST  MTU:65536  Metric:1
              RX packets:12924629 errors:0 dropped:0 overruns:0 frame:0
              TX packets:12924629 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:2411677362 (2.2 GiB)  TX bytes:2411677362 (2.2 GiB)

    lo:0      Link encap:Local Loopback
              inet addr:127.0.1.1  Mask:255.0.0.0
              UP LOOPBACK RUNNING MULTICAST  MTU:65536  Metric:1

    sit0      Link encap:IPv6-in-IPv4
              NOARP  MTU:1480  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:0
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    spu_ds_dummy Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              UP RUNNING NOARP  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:100
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    spu_us_dummy Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
              UP RUNNING NOARP  MTU:1500  Metric:1
              RX packets:0 errors:0 dropped:0 overruns:0 frame:0
              TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:100
              RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

    tap21     Link encap:Ethernet  HWaddr C6:5B:DF:5E:32:45
              UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
              RX packets:360414 errors:0 dropped:36 overruns:0 frame:0
              TX packets:2671507 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:260042868 (247.9 MiB)  TX bytes:571299038 (544.8 MiB)

    tap22     Link encap:Ethernet  HWaddr 7E:04:14:D2:8D:E7
              UP BROADCAST RUNNING PROMISC MULTICAST  MTU:1500  Metric:1
              RX packets:1387183 errors:0 dropped:50 overruns:0 frame:0
              TX packets:4038863 errors:0 dropped:0 overruns:0 carrier:0
              collisions:0 txqueuelen:1000
              RX bytes:731709733 (697.8 MiB)  TX bytes:2059395498 (1.9 GiB)

    The only two I am sure about are tap21 and tap22 (two OpenVPN TAP interfaces)
