Installing and configuring authoritative, recursive, and DoT/DNSSEC DNS server with Unbound

[Delusion]

Thanks!
Works fine (also don't forget to make dnsmasq.postconf executable)



[rgnldo]

I changed the steps to configure the unbound. The Unbound will only cache services, and authoritative dns recursion. All services with Diversion, Stubby and Skynet will continue with dnsmasq.



[Delusion]

I changed the steps to configure the unbound. The Unbound will only cache services, and authoritative dns recursion. All services with Diversion, Stubby and Skynet will continue with dnsmasq.

So now it doesn't do DNSSEC validation right? if so, when you enable DNSSEC in gui , it doesn't work because it needs more than 0 chache-size configured in dnsmsaq.conf which gets zeroed because of dnsmasq.postconf



[rgnldo]

So now it doesn't do DNSSEC validation right?

Review the steps in the post. Works, Yes.



[rgnldo]

DNSSEC

Tested on FW Merlin 384.12. In FW 384.13-Alpha will not be possible.



[rgnldo]

Using the FW 384.12. Configuring the Unbound + Stubby gave to set up similar tests rootcanary of the solution dnsmasq + openssl Merlin on FW 384.13-Alpha.



[Swistheater]

How to start unbound from Entware (I assume default prefix /opt is used). I still forward queries from dnsmasq (well it is a query forwarder) to unbound, listening to port 5453. The Unbound will cache services, and authoritative dns recursion. All services with Diversion, Stubby and Skynet will continue with dnsmasq.

Credits contributions [B][COLOR=#b30000]@SomeWhereOverTheRainBow[/COLOR][/B] @Swistheater (for Stubby.yml)

Contributions to this post are well received

Install unbound

Run unbound-control-setup for Unbound monitoring

Create /opt/var/lib/unbound directory

Change directory ownership to nobody, in case you want to drop daemon privileges from root to nobody

Edit /opt/etc/unbound/unbound.conf


Get root DNS server:

curl -o /opt/var/lib/unbound/root.hints https://www.internic.net/domain/named.cache

Edit and start unbound daemon

#!/bin/sh
export PATH=/sbin:/bin:/usr/sbin:/usr/bin:$PATH
export TZ=$(cat /etc/TZ)
ENABLED=yes
PROCS=unbound
ARGS="-c /opt/var/lib/unbound/unbound.conf"
PREARGS="nohup"
DESC=$PROCS
PATH=/opt/sbin:/opt/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin

. /opt/etc/init.d/rc.func

Create dnsmasq custom configuration in /jffs/scripts/dnsmasq.postconf:

CONFIG=$1
source /usr/sbin/helper.sh
pc_delete "no-negcache" /etc/dnsmasq.conf
pc_delete "bogus-priv" /etc/dnsmasq.conf
pc_delete "domain-needed" /etc/dnsmasq.conf
pc_append "server=127.0.1.1#5453" /etc/dnsmasq.conf
pc_replace "cache-size=1500" "cache-size=0" /etc/dnsmasq.conf

Configure Stubby for DNSSEC validation:
nano /jffs/configs/stubby.yml.add

tls_min_version: GETDNS_TLS1_2
tls_cipher_list: "EECDH+AESGCM:EECDH+CHACHA20"
tls_max_version: GETDNS_TLS1_3
tls_ciphersuites: "TLS_AES_128_GCM_SHA256:TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256"

chmod +x /jffs/configs/stubby.yml.add

nano /jffs/scripts/stubby.postconf

#!/bin/sh
CONFIG=$1
source /usr/sbin/helper.sh
pc_insert "  - GETDNS_TRANSPORT_TLS" "dnssec_return_status: GETDNS_EXTENSION_TRUE" $CONFIG
pc_replace "idle_timeout: 9000" "idle_timeout: 2000" $CONFIG
pc_replace "tls_connection_retries: 2" "tls_connection_retries: 5" $CONFIG
pc_replace "timeout: 3000" "timeout: 2000" $CONFIG
pc_insert "dnssec_return_status: GETDNS_EXTENSION_TRUE" "return_both_v4_and_v6: GETDNS_EXTENSION_TRUE" $CONFIG

chmod +x /jffs/scripts/stubby.postconf
run service restart_stubby

this sets the TZ for accurate sysloging, and nohup allows for commands to be used to verify active listening addresses these different commands can be runned via command line
ps | grep unbound | grep -v grep
netstat -lnptu | grep unbound
netstat -lnpt | grep -E '^Active|^Proto|/unbound'

last thing, I treated this like a headless server situation
i opted to install haveged with
opkg install haveged
then I modified /opt/etc/init.d/S02haveged
nano /opt/etc/init.d/S02haveged

#!/bin/sh
if [ "$1" = "start" ] || [ "$1" = "restart" ]; then
        # Wait for NTP before starting
        logger -st "S02haveged" "Waiting for NTP to sync before starting..."
        ntptimer=0
        while [ "$(nvram get ntp_ready)" = "0" ] && [ "$ntptimer" -lt "300" ]; do
                ntptimer=$((ntptimer+1))
                sleep 1
        done

        if [ "$ntptimer" -ge "300" ]; then
                logger -st "S02haveged" "NTP failed to sync after 5 minutes - please check immediately!"
                echo ""
                exit 1
        fi
fi
export TZ=$(cat /etc/TZ)
ENABLED=yes
PROCS=haveged
ARGS="-w 1024 -d 32 -i 32 -v 1"
PREARGS=""
DESC=$PROCS
PATH=/opt/sbin:/opt/bin:/opt/usr/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin

. /opt/etc/init.d/rc.func

NOTE: It is advisable to configure swap memory.

i see you borrowed a page from my book. it should be noted that those modifications do not work well for the new 384.13 alpha as the style of DNSSEC has changed within dnsmasq, and the combination can be quite unstable.



[rgnldo]

those modifications do not work well for the new 384.13 alpha

Yes, it had noticed. Not even the Unbound works in the FW 384.13. I will stay a good time in the FW 384.12, if the incompatibility remains.



[rgnldo]

Update tips for FW 384.13_beta1



[Delusion]

Update tips for FW 384.13_beta1

Thanks, So for those with 384.13 beta, we don't need to edit Stubby ? we skip the steps below the green headline? With 384.13 beta we need to enable DNSSEC in gui ?



[rgnldo]

we skip the steps below the green headline?

Yes

With 384.13 beta we need to enable DNSSEC in gui ?

No

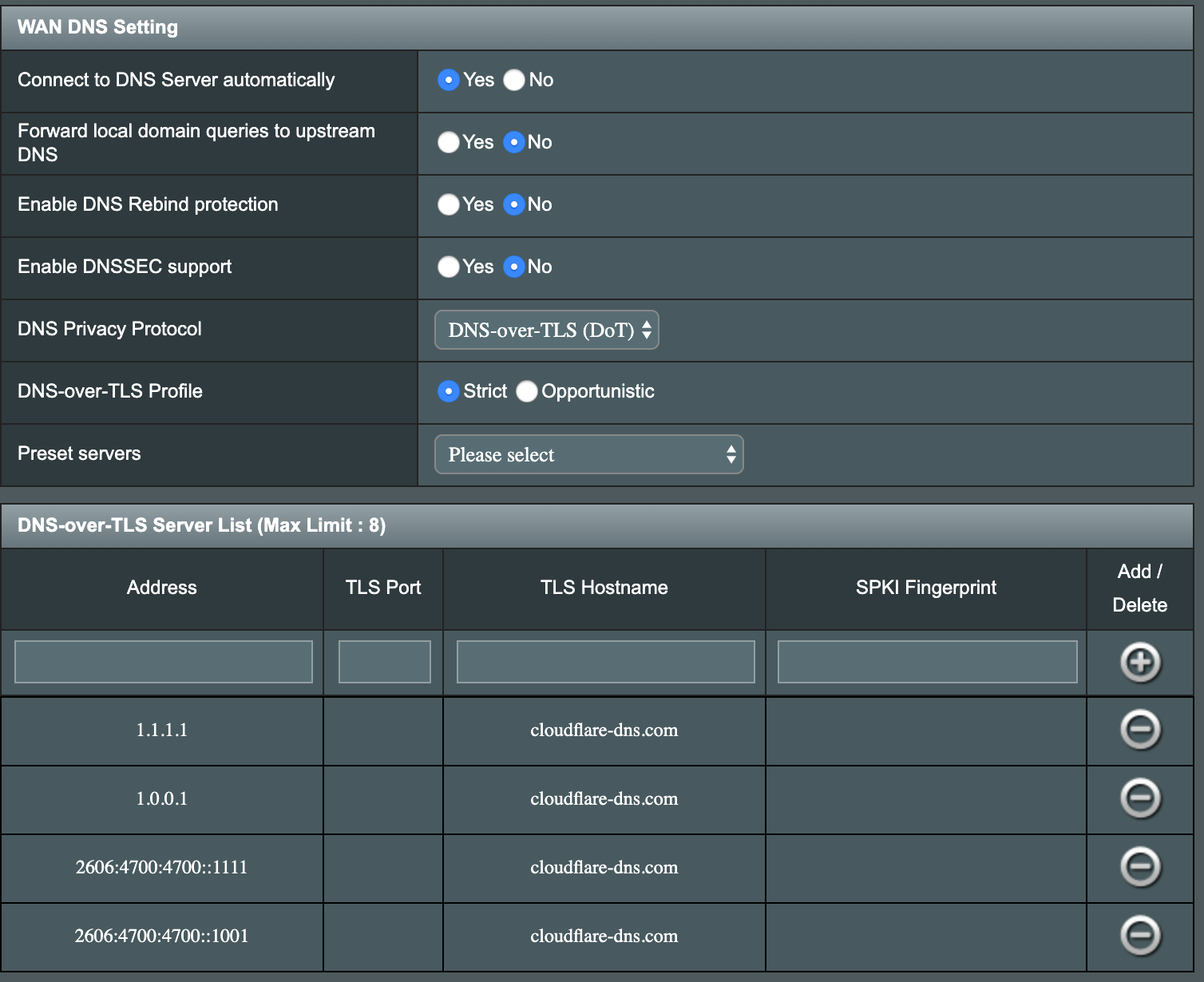

Should only mark Wan local DNS so query lookups are on 127.0.0.1



[rgnldo]

So for those with 384.13 beta

Don't forget to report your experience here.



[Mutzli]

With 384.13 beta-1 the 1.1.1.1 help page reports that I'm not on 1.1.1.1 and I'm not using DoT? Is that a false negative, I'm sure the router config was not changed from 384.12



[Delusion]

With 384.13 beta-1 the 1.1.1.1 help page reports that I'm not on 1.1.1.1 and I'm not using DoT? Is that a false negative, I'm sure the router config was not changed from 384.12

View attachment 18746

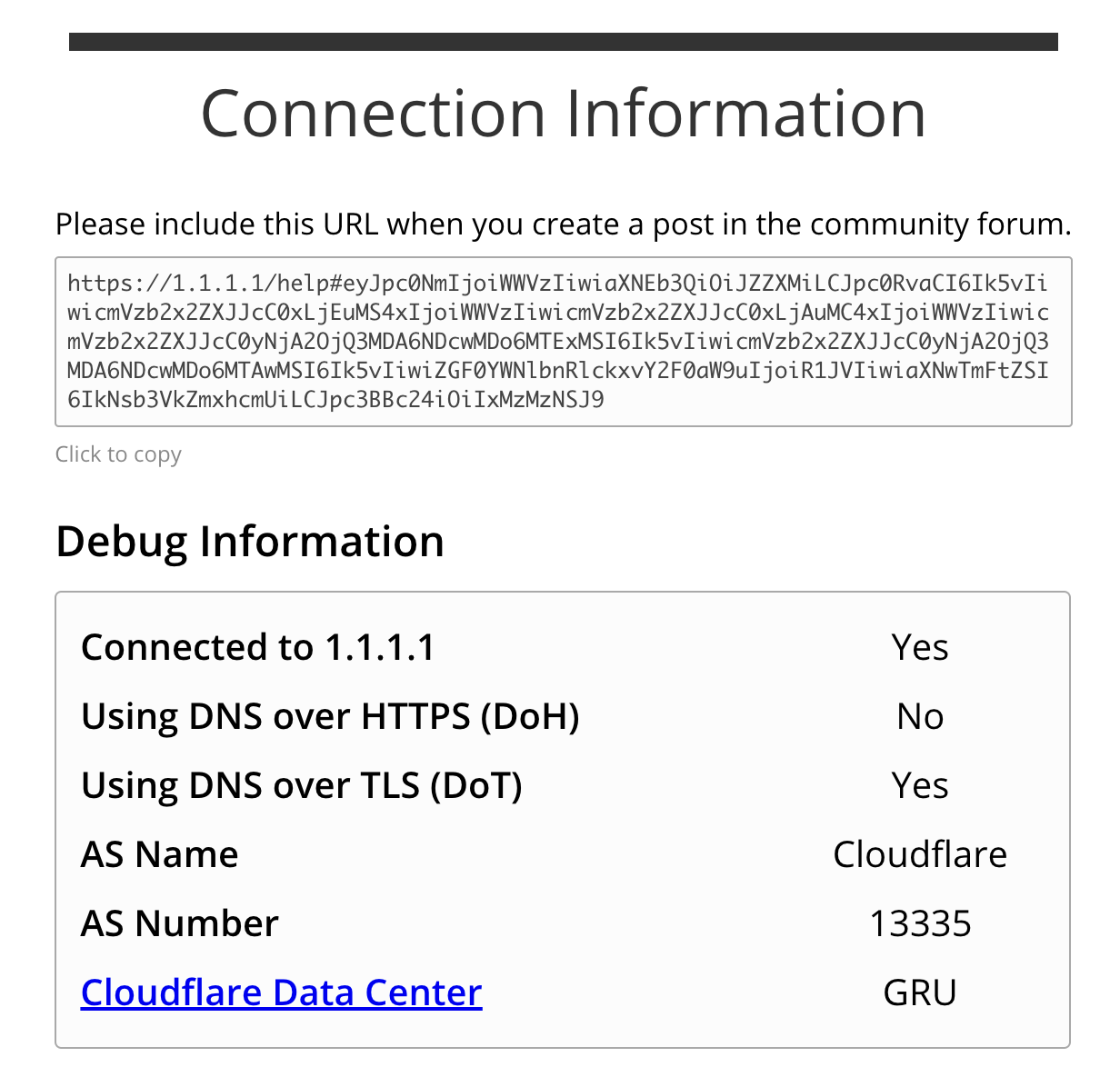

I get the same regardless of Unbound with 1.1.1.1 test page, if you look down, it does say you are using 1.1.1.1 server and also cloudflare's ipv6 server



[rgnldo]

With 384.13 beta-1 the 1.1.1.1 help page reports that I'm not on 1.1.1.1 and I'm not using DoT? Is that a false negative

Don't trust Cloudflaire to verify DoT, it's pure marketing. Use these options:

dig pir.org +dnssec +multi
-> result NOERROR

dig www.dnssec-failed.org
-> result SERVFAIL

https://rootcanary.org/test.html
-> result level security

DoT verify:
https://www.dnsleaktest.com/results.html
-> result only ISP server DoT



[Delusion]

Don't forget to report your experience here.

Seems to work fine . DNSSEC and DoT working. But which one does the DNSSEC velidation? Unbound or Merlin's firmware?



[rgnldo]

But which one does the DNSSEC velidation? Unbound or Merlin's firmware?

Unbound+Stubby

dig pir.org +dnssec +multi
-> result NOERROR

dig www.dnssec-failed.org
-> result SERVFAIL

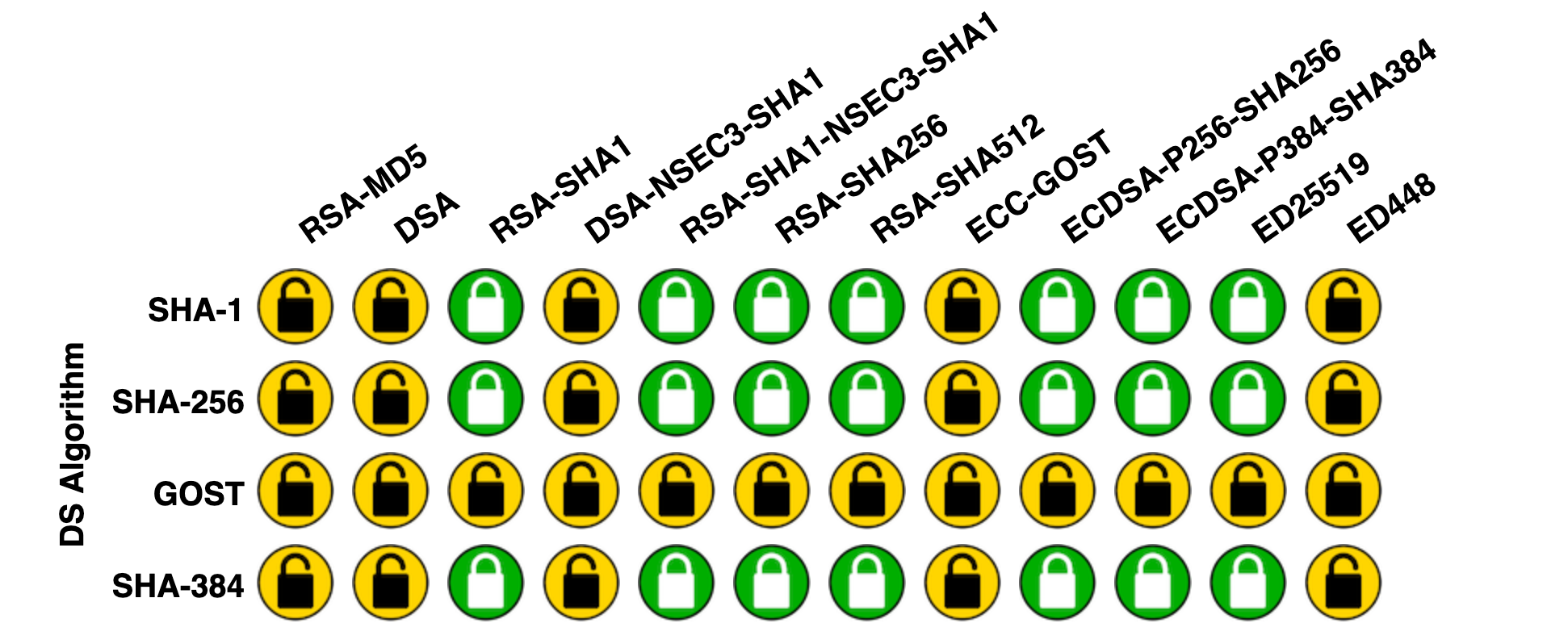

https://rootcanary.org/test.html
-> result level security



[Mutzli]

Don't trust Cloudflaire to verify DoT, it's pure marketing. Use these options:

dig pir.org +dnssec +multi
-> result NOERROR

dig www.dnssec-failed.org
-> result SERVFAIL

https://rootcanary.org/test.html
-> result level security

DoT verify:
https://www.dnsleaktest.com/results.html
-> result only ISP server DoT

Excellent, no leaks reported:



[rgnldo]

https://rootcanary.org/test.html
-> result level security

Note, if you have done this test in the same browser, you should clear the cache.



[Mutzli]

DNSSEC Resolver Test
This test determines whether your DNS resolver validates DNSSEC signatures. For this test you need JavaScript turned on.

Yes, your DNS resolver validates DNSSEC signatures.
