Does the Asus Blue Cave support mediabridge mode?

  • ATTENTION! As of November 1, 2020, you are not able to reply to threads 6 months after the thread is opened if there are more than 500 posts in the thread.
    Threads will not be locked, so posts may still be edited by their authors.
    Just start a new thread on the topic to post if you get an error message when trying to reply to a thread.

psychopomp1

Senior Member

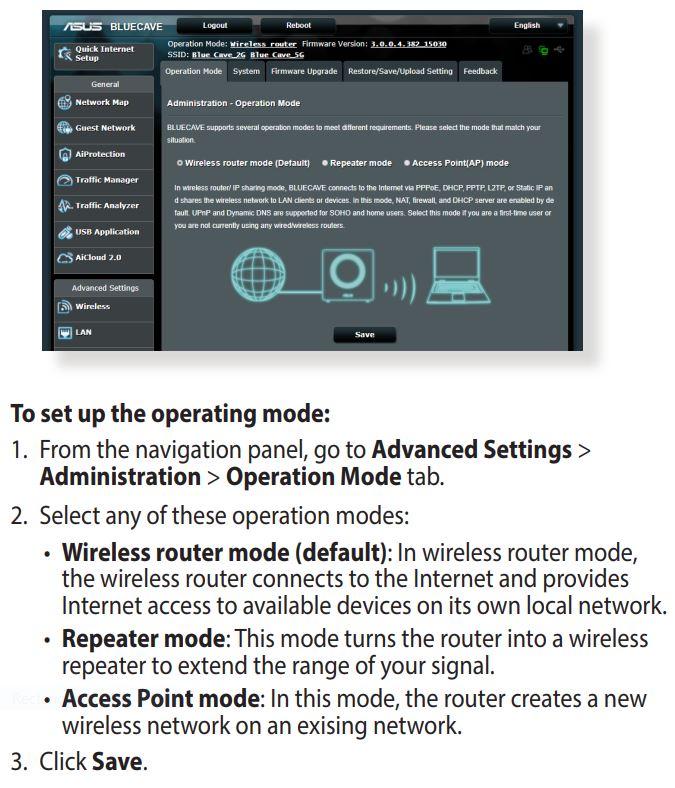

According to the specs on the Asus website it does, but looking at the user manual (p86), there's no mention of this:



Can someone clear this up please?
(thinking of buying this to use as a wireless bridge, aka media bridge mode)

Cheers


L&LD

Part of the Furniture
Unless the firmware changed and added Media Bridge Mode (if I can see that blurry image good enough, it looks like firmware v382.xx), it doesn't.

Don't you have any other choices, other than a Blue Cave?


wouterv

Very Senior Member
If you own that BlueCave I suggest to make sure it runs the latest firmware (3.0.0.4.384.46630) and have a look at the real Operation Mode page to see the actual supported modes.
With the latest firmware it does support AiMesh, which offers similar functionality like Media Bridge (given that your main router does support AiMesh).


psychopomp1

Senior Member
Thanks guys. Reasons for specifically choosing the Blue Cave is that I'm looking for a 4x4 wifi 5 router/AP which i can put behind the TV (to provide TV and XBox with ethernet connections as their built-in wifi is rubbish) but as space is limited, i need a router with a small footprint, doesn't have annoying flashing lights (tv is in bedroom) and performs reasonably well - the Asus Blue Cave seems to tick all 3 boxes. I'm currently using a spare Netgear R6300v2 in wireless bridge mode and it performs quite well, but is only 3x3. Main router is a Netgear RAX200 so AiMesh is out of the window. Internet connection is 1 Gig FTTH.

Anyway if the Aimesh feature is now included in the latest firmware on the Blue Cave so I'm guessing Mediabridge will also be included. It seems my screenshot is of an earlier or initial firmware for the Blue Cave where Mediabridge wasn't included.

Last edited:

L&LD

Part of the Furniture
Media Bridge mode isn't the same as AiMesh. In Media Bridge mode, the router only supports wired clients. In AiMesh mode, it supports both, but with the disadvantage of having another AP 'dirtying' up the airwaves with needless Wi-Fi. How are you going to ensure nothing connects to it wirelessly? If anything does, and while it is active, your throughput is cut in half.

Asus adding AiMesh does not automatically mean it would add Media Bridge mode too.

Media Bridge Mode

Repeater mode = wireless AiMesh


wouterv

Very Senior Member
Thanks guys. Reasons for specifically choosing the Blue Cave is that I'm looking for a 4x4 wifi 5 router/AP which i can put behind the TV (to provide TV and XBox with ethernet connections as their built-in wifi is rubbish) but as space is limited, i need a router with a small footprint, doesn't have annoying flashing lights (tv is in bedroom) and performs reasonably well - the Asus Blue Cave seems to tick all 3 boxes. I'm currently using a spare Netgear R6300v2 in wireless bridge mode and it performs quite well, but is only 3x3. Main router is a Netgear RAX200 so AiMesh is out of the window. Internet connection is 1 Gig FTTH.

Anyway if the Aimesh feature is now included in the latest firmware on the Blue Cave so I'm guessing Mediabridge will also be included. It seems my screenshot is of an earlier or initial firmware for the Blue Cave thinkwhere Mediabridge wasn't included.
Why specifically a 4x4 router?
I also believe the footprint of the Blue Cave is not typically smaller than a 3x3 RT-AC68U or 4x4 (5 GHz) RT-AC86U.
The blue front LED's of a RT-AC68U can easily be covered by black tape if they are disturbing.


psychopomp1

Senior Member
Why specifically a 4x4 router?
I also believe the footprint of the Blue Cave is not typically smaller than a 3x3 RT-AC68U or 4x4 (5 GHz) RT-AC86U.
The blue front LED's of a RT-AC68U can easily be covered by black tape if they are disturbing.
My main router is also 4x4 (Netgear RAX200) so obviously for optimal performance, a 4x4 router/AP would be best. A 4x4 wifi 6 device would be perfect such as the Netgear EAX80 extender but i don't want to spend silly money on that. A 4x4 wifi 5 router is probably the next best thing in terms of cost v performance. I'm already getting around 500 Mbps on my Netgear R6300v2 but this is only 3x3 and perhaps more importantly, the other half is complaining that its lights are too bright at night...despite being switched off to minimum in settings. So given that the Blue cave can be bought for around $80, is 4x4, and can have its LEDs totally dimmed, I believe it would be a worthwhile investment.


wouterv

Very Senior Member
My suggestion was based on the fact that the RT-AC68U and RT-AC86U are more common.
You seems to have well thought about your choice, the price of the Blue Cave is reasonable and the design for sure more fancy then those things with their external antenna's. Just make sure it does support the features you need.


shoman94

Regular Contributor
I looked and it does.....


Attachments

  • Screenshot_20210929-155223_Chrome.jpg
    73.3 KB · Views: 16

wouterv

Very Senior Member
Then as suggestion for setting up the Media Bridge:
Give the Media Bridge a fixed IP address, as follows:
Assuming your main router has address 192.168.1.1, set the DHCP range to start at 192.168.1.3.
Then give the Media Bridge address 192.168.1.2 with Subnet Mask 255.255.255.0, Default Gateway and DNS Server 1 to 192.168.1.1.

In my setup I have a RT-AC68U as main router and a RT-AC1900U as Media Bridge, the IP TV set is behind the Media Bridge.


psychopomp1

Senior Member

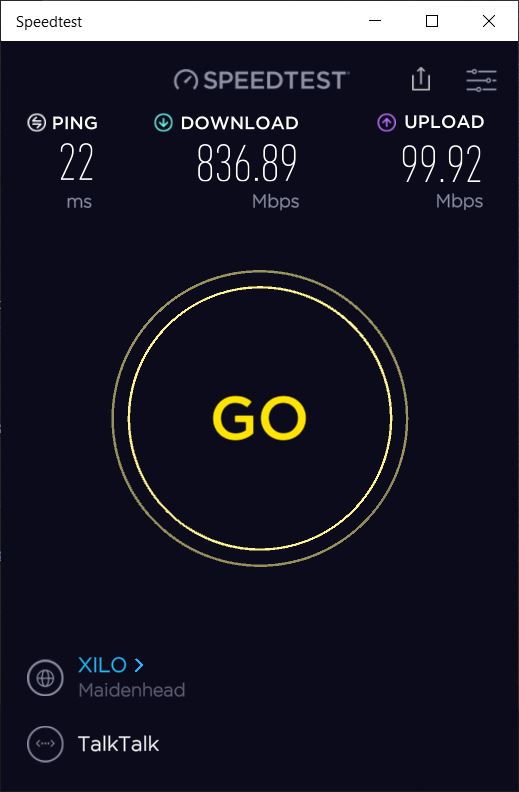

An update: bought the Blue Cave last week and its working flawlessly in media bridge mode. I did a wired speed test on my laptop connected to the Blue Cave in the location where the Blue Cave will live and its giving me 800+ Mbps consistently - previously i couldn't get above 600 Mbps on my Netgear R6300v2. So it seems that extra send/receive stream on the Blue cave (4x4 versus 3x3) gives me an extra 200 Mbps or so in throughput. Happy days!



L&LD

Part of the Furniture
This is exactly the reason to want a full-fat 4x4:4 router and AiMesh nodes/Media Bridges (always).
