Static DHCP list not shown in UI following update to 3004.388.4

[badger]

I recently updated my RT-AX88U to 3004.388.4 and noticed the static DHC list is completely gone form the UI.
I specify it is only gone from the UI because i tried adding new entries to the list and those do not show in the UI either. I had a large list of entries saved and i suspect they're still in the config and there is just a bug in the UI.
Wondering if anyone has any idea how to fix this without having to completely wipe the router settings and start from scratch..

I already tried re-applying the update and received the same result.



[Ripshod]

Did you reset the router with the WPS method after flashing the new firmware? Sometimes it takes a few resets.



[Morris]

I recently updated my RT-AX88U to 3004.388.4 and noticed the static DHC list is completely gone form the UI.
I specify it is only gone from the UI because i tried adding new entries to the list and those do not show in the UI either. I had a large list of entries saved and i suspect they're still in the config and there is just a bug in the UI.
Wondering if anyone has any idea how to fix this without having to completely wipe the router settings and start from scratch..

I already tried re-applying the update and received the same result.

Try clearing your browser cache



[badger]

Did you reset the router with the WPS method after flashing the new firmware? Sometimes it takes a few resets.

I've never heard of the WPS method. Will that wipe my settings? I'm trying to avoid having to reconfigure everything.



[badger]

Try clearing your browser cache

I tried clearing cache, different devices and different browsers. No luck.



[Crimliar]

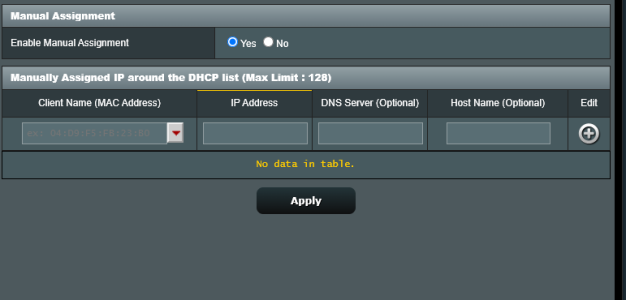

As your image indicates a possibility of 128 DHCP entries would I be correct in assuming you are, or have been using YazDHCP? If so then the upgrade may have created some level of mismatch between the router and your entware install. This would also mean that you could back up the files in /jffs/addons/YazDHCP.d/ and restore them after a clean install - if necessary!



[badger]

As your image indicates a possibility of 128 DHCP entries would I be correct in assuming you are, or have been using YazDHCP? If so then the upgrade may have created some level of mismatch between the router and your entware install. This would also mean that you could back up the files in /jffs/addons/YazDHCP.d/ and restore them after a clean install - if necessary!

I use whatever is built into Merlin. I haven't installed anything custom on top of that.



[Ripshod]

I believe you're going to have to factory reset the router with the WPS button. Without YazDHCP there's no way to export/import your dhcp settings so taking screenshots and manually setting it back up is your only option. That or go back to the last firmware (with your fingers crossed)

[Wireless Router] ASUS router Hard Factory Reset - Method 2 | Official Support | ASUS Global



[Martinski]

I recently updated my RT-AX88U to 3004.388.4 and noticed the static DHC list is completely gone form the UI.
I specify it is only gone from the UI because i tried adding new entries to the list and those do not show in the UI either. I had a large list of entries saved and i suspect they're still in the config and there is just a bug in the UI.
Wondering if anyone has any idea how to fix this without having to completely wipe the router settings and start from scratch..

I already tried re-applying the update and received the same result.

I use whatever is built into Merlin. I haven't installed anything custom on top of that.

If you have the SSH server enabled & configured on your router, you can use the following command to double-check if the built-in NVRAM variable still exists and if it has any of your custom settings:

nvram show 2>/dev/null | grep "dhcp_staticlist="

If the key value is completely empty then your custom entries have been somehow deleted & are completely gone so there's nothing to recover. And if that's the case, who knows what else may have been deleted or corrupted so it looks like a reset to factory defaults would be necessary.

OTOH, if the NVRAM key still contains your previous entries, you can quickly do a backup now & later on do a restore (after a reset perhaps?) using a simple shell script like the one attached to this post (make sure to remove the ".TXT" file extension and also save the resulting output files on a separate storage device).

For an alternative method using a script with some more "bells & whistles" see the following post:

Script to Back Up & Restore Subsets of NVRAM Variable Settings.

I moved this thread's topic from this post as it was off-topic on that particular thread. UPDATE [2024-Mar-07]: The script was moved to GitHub. The version "0.7.11" update is now available. =========================================================== I see, there's however no such option on...

www.snbforums.com



[KevTech]

On Merlin you can still use WinSCP to backup/restore/edit the dhcp_staticlist and custom_clientlist.



[Martinski]

On Merlin you can still use WinSCP to backup/restore/edit the dhcp_staticlist and custom_clientlist.

When using the WinSCP tool, there's a potential risk of corrupting the NVRAM key values if you inadvertently don't follow exactly the correct format/syntax when editing the key contents. In addition, using the nvram CLI would be considered the safest method as it encapsulates the internal mechanism & APIs for modifying, updating & committing the NVRAM variables, all of which are unavailable when using only an external tool.
