Wireless Report v1.3.9 [2026-Apr-12] - WebGUI Table of all connected Client Devices showing RSSI (available in AMTM!)

[kda]

Wireless Report for AiMesh

available in AMTM

Manual Github install link:

curl -sfL --retry 3 https://raw.githubusercontent.com/JB1366/Wireless_Report/main/wirelessreport.sh -o /tmp/wirelessreport.sh && sh /tmp/wirelessreport.sh install

WHAT: Wireless Report gives you an overall snapshot of your wireless network in a sortable/graphical table. The report script installs a tab at the end of the wireless-menu, where you can click headers for sorting/viewing data. a couple of columns are dual viewing, (mac address/ip address) & (SSID/IFACE)

WHY: the reason why I created the script was because ASUS web UI doesn't show AiMesh node information, such as rssi, the main reason I started this, plus its nice to see all wireless devices in one spot. Asus firmware takes way to long to to adjust devices to correct router/node, with the report, I can manually adjust devices easier & faster.

PREREQUISITE: you need to install passwordless SSH to nodes, if one node is detected, script will install, link below:

ASUS-Merlin Router to AIMesh Nodes - SSH Key Setup: Password(#19)-Passwordless(#16) or use Curl(#30)​

NON-PREREQUISITE: but helps with pretty looking HOSTNAMES

YazDHCP - YazDHCP v1.2.5 [2026-Mar-22] - Feature expansion of DHCP assignments (increasing limit on the number of DHCP reservations)​

View attachment 71160
View attachment 71161

any questions, please feel free to reach out.

beautifull this report, i liked this, some problems to install, the first time nodes off line, searching problem dropbear, one node with merlin other stock firmware The router with stock firmware worked with dropbear, the other don't
Oke then back to stock firmware, hm doesn't work to get this router back to stock firmware of asus, but suddenly i looked on wireless report all nodes online.
It works and i'm very happy about this program.
Dropbears works too
RT-AX88U, RT-AX58U (merlin), RP-AX58 (asus firmware)



[JB_1366]

https://www.snbforums.com/threads/w...devices-showing-rssi-available-in-amtm.96861/

POST#1 - Instructions meticulously created by @jksmurf, most excellent job!!



[JB_1366]

v1.3.8-updated USB detection, hopefully its finally fixed. for people with usb non-detected, uninstall old version, reinstall new version.



[SashaSolitaire]

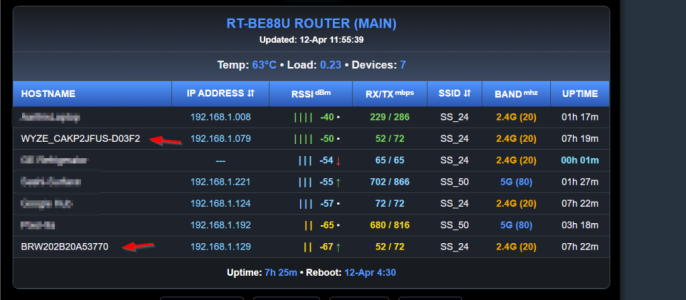

@JB_1366 reinstalled again. Based on our DMs, I know that it does not work on my ZenWifi BD4 nodes, due to the Qualcomm/Broadcom issues, but hopeful that eventually you can me it work. One question, where should I rename these? In the ASUS WebUI network map, they appear with the correct names, Wyze Driveway Camera and Brother Printer.



[Untried3868]

where should I rename these?

Under LAN - DHCP Server: Hostname (Optional) column.



[JB_1366]

@JB_1366 reinstalled again. Based on our DMs, I know that it does not work on my ZenWifi BD4 nodes, due to the Qualcomm/Broadcom issues, but hopeful that eventually you can me it work. One question, where should I rename these? In the ASUS WebUI network map, they appear with the correct names, Wyze Driveway Camera and Brother Printer.

Do any of you network pros, have any experience with the qualcomm BD4's? i know they use iwconfig & ath, but cant get script to recognize them



[JB_1366]

v1.3.9-updated main router-scan functionality. thx @Untried3868 for your help.
