Anyone else "mount" their router like this?

Discussion in 'ASUSWRT - Official' started by badbob001, Jun 29, 2020.

  1. badbob001

    badbob001 Occasional Visitor

    Joined:
    Oct 30, 2012
    Messages:
    37

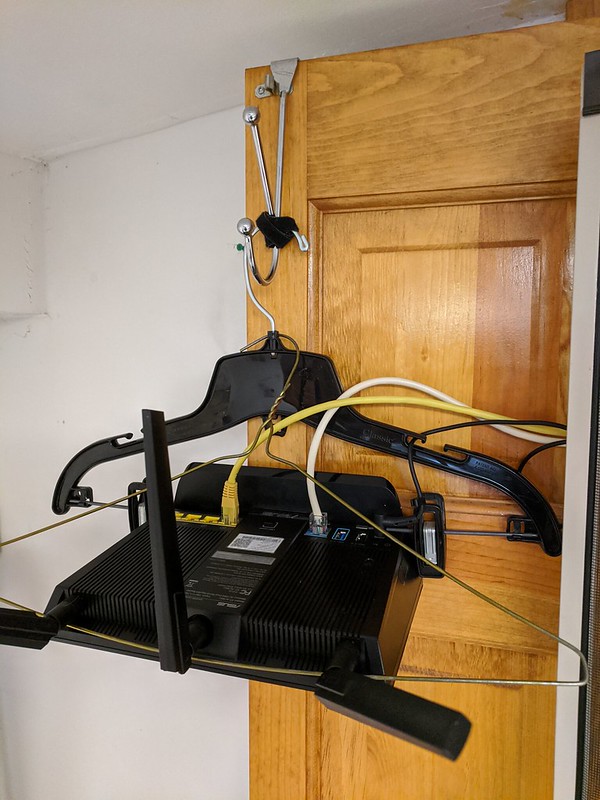

    I don't want my ac86u in the basement closet so I wall mounted it outside the closet with two clothes hangers. The main hanger has a horizontal bar that can be unhooked so I ran that through the space behind the clear plastic with the asus logo. The other hanger is just to keep it pointed horizontally.
    [​IMG]

    If only asus added mounting holes so I could just add two screws to the door and be done.

    tallytr likes this.
  2. Andy1932

    Andy1932 Senior Member

    Joined:
    Mar 10, 2016
    Messages:
    220
    LOL. No, I'm pretty sure you're the first! ;)

    Can you borrow a cordless drill to make your own holes in the base?

    tallytr, Greg72 and L&LD like this.
  3. OzarkEdge

    OzarkEdge Part of the Furniture

    Joined:
    Feb 14, 2018
    Messages:
    2,738
    Location:
    USA
    Needs more barbwire and chewing gum.

    The metal hanger bridging the three antennas might hurt. You could replace the hangers with one string up to the hook and then down and out to antennas 1 and 3 tie-off points.

    Antenna signal pattern.

    OE

    tallytr, Greg72 and L&LD like this.
  4. RMerlin

    RMerlin Super Moderator

    Joined:
    Apr 14, 2012
    Messages:
    33,269
    Location:
    Canada
    Picture that with an upside down RT-AC5300...

    joltdude, tallytr and Greg72 like this.
  5. badbob001

    badbob001 Occasional Visitor

    Joined:
    Oct 30, 2012
    Messages:
    37
    I've replaced the hanger near the antenna with a plastic one.

    tallytr, Andy1932 and Greg72 like this.
  6. OzarkEdge

    OzarkEdge Part of the Furniture

    Joined:
    Feb 14, 2018
    Messages:
    2,738
    Location:
    USA
    L&LD likes this.
  7. badbob001

    badbob001 Occasional Visitor

    Joined:
    Oct 30, 2012
    Messages:
    37
    Don't you think more heat can be displaced with the rear vents facing up?

    This is only a prototype. Maybe for production, I try to find a fancy wooden hanger.

  8. tallytr

    tallytr Senior Member

    Joined:
    Nov 2, 2014
    Messages:
    220
    I have OCD.
    Even if this could be a remote possibility, don't :)

  9. wouterv

    wouterv Very Senior Member

    Joined:
    Aug 4, 2013
    Messages:
    1,104
    The box is made to be fitted vertical, with the antenna connectors on top.
    The air flow is assumed from bottom to top, along the components on the board and the heat sink, vent openings are at the intended top and the rear.
    With the router mounted horizontal - facing down, the air flow is different for sure and may cause heat traps.
    My RT-AC68U is positioned per design, where the front (with the LED's) is slightly warmer then the rest of the box, if this side was facing down I can imagine the warmth would be trapped at that side of the PCB.

    tallytr and OzarkEdge like this.
  10. OzarkEdge

    OzarkEdge Part of the Furniture

    Joined:
    Feb 14, 2018
    Messages:
    2,738
    Location:
    USA
    OP could upgrade further to make it a coffee mug warmer!

    OE

    tallytr and L&LD like this.
  11. wouterv

    wouterv Very Senior Member

    Joined:
    Aug 4, 2013
    Messages:
    1,104
    I just applied for Patent:

    tallytr, jsbeddow and L&LD like this.
