Release Asuswrt-Merlin 3006.102.4 is now available

[octopus]

Updated my GT-AX6000, update went smoot.
I can't untick b/g protection in N only mode, it doesn't stay.



[zitev]

There was a warning in the initial 3006 release changelog, and the devs were warned weeks ahead of time about it. It's been almost a year now since that initial 3006 release, I'm not going to keep repeating the same warning over and over again in every release. It's their developer's responsibility to either update their addons, warn their users, or have someone in the community warn other users if an addon dev is MIA/retired. I'm not going to personally keep track of 20+ addons myself, sorry.

I just moved from 3004.388.9_2 to 3006.102.4, I didn't assume that an older, initial release contained a warning that is still relevant for the current version, but whatever, it's my fault, anyway, thank you for your hard work!



[wonderiuy]

Dirty upgrade from 3004.388.6
Wireless page "Advanced_Wireless_Content.asp" doesn't recognize any change and "Apply" button do nothing if pressed.
I wanted to change 2.4 control channel from combo box.
Deleted the browser cache with no effect, changed browser with same result
Browser console says:

Any solution?

EDIT: fond solution myselft: AiMesh node was preventing saving Wireless config. Have removed node, as suggested, and now the page is working again



[SkippyP]

Updated my GT-AX6000, update went smoot.
I can't untick b/g protection in N only mode, it doesn't stay.

View attachment 65621
View attachment 65620

I notice the same thing on my AX86U Pro...reverts back to being ticked.



[David Cavalli]

Dirty upgrade from 3004.388.8_4 to 3006.102.4 on a RT-AX88U Pro.
Other than having to learn the new GUI, everything seems to be going great. It even ported over both Guest networks (2.4 & 5) seamlessly, even though it warned of only putting across one. Love the new GUI layout and no complaints or problems here.
Thanks!



[MDM]

even though it warned of only putting across one.

Only the first yes, but for each radio's.



[mmjlmjl]

Good news! Ready to upgrade most of my routers/APs to this branch Just the XT and ET12's will stay on the ASUS 9.0.0.6 beta given : Is it correct to assume all these routers now support Gust Pro VLANs except the "zenWifi Pro XT12"?



[inakaya]

Dirty upgrade from 3004.388.8_4 to 3006.102.4 on a RT-AX88U Pro everything working great (20 wired/wifi devices) apart from connecting my doorbell camera on the new IoT network, using Onvif, to my Synology NAS Surveillance Station on my main network. This worked previously when I had used Yazfi to configure an IoT Guest Network the camera was previous;y connected to.

Have granted the new IoT Network "Access Intranet to Main Network" but camera not discovered when Surveillance Station scans the network or gets picked up when I configure manually; whereas my phone, using the camera's app, connects fine from my main network and I can view live/footage on the SDCard.

Not sure what's up but given the above assuming I'm the problem - does anyone have any suggestions what I might try to get it working please?



[mmjlmjl]

Dirty upgrade from 3004.388.8_4 to 3006.102.4 on a RT-AX88U Pro everything working great (20 wired/wifi devices) apart from connecting my doorbell camera on the new IoT network, using Onvif, to my Synology NAS Surveillance Station on my main network. This worked previously when I had used Yazfi to configure an IoT Guest Network the camera was previous;y connected to.

Have granted the new IoT Network "Access Intranet to Main Network" but camera not discovered when Surveillance Station scans the network or gets picked up when I configure manually; whereas my phone, using the camera's app, connects fine from my main network and I can view live/footage on the SDCard.

Not sure what's up but given the above assuming I'm the problem - does anyone have any suggestions what I might try to get it working please?

This firmware (by design of Asus) does not allow advanced firewall rules to be setup to allow traffic between VLANS. Each VLAN is separated and only has access to internet. witching tha access to main network on basically makes it part of the same subnet (so no FW/traffic restrictions between the VLANs/SSID's) so only usefull for a different SSID for a particular purpose (i.e. WPA2 TKIP support). Either configure a separate router or dedicated firewall to handle inter VLAN traffic (and switch off DHCP for these vlans on all ASUS nodes). Or re-install Yazfi (if supported on this firmware) to set it up as you liked. . Beware that I could not downgrade one of my ET12's to an older beta firmware without serious web interface issues.



[inakaya]

This firmware (by design of Asus) does not allow advanced firewall rules to be setup to allow traffic between VLANS.

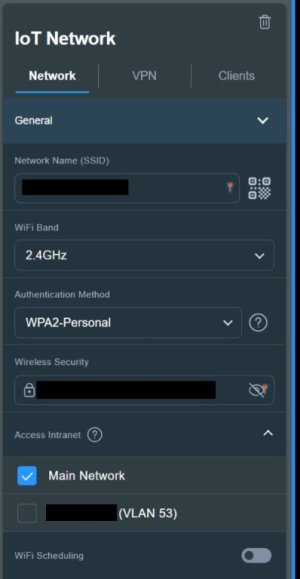

@mmjlmjl - Why are we given the option to connect the iot network to the main network then, see below? Or am I missing your point?

Like I said this worked previously so not sure why this would now be subject to needing stricter 'advanced' firewall rules.

n.b. - The use of "vlan_guest" to name my guest network is purely coincidental



[bennor]

Or re-install Yazfi (if supported on this firmware)...

YazFi is not supported on 3006.102.x firmware. Instead people have been using scripting to setup IPTables entries to try and emulate some of YazFi's features. For example see the following post (and discussion) on using the firewall-start file to create IPTables entries.
https://www.snbforums.com/threads/t...st-network-pro-limitations.94438/#post-952345



[bennor]

Like I said this worked previously so not sure why this would now be subject to needing stricter 'advanced' firewall rules.

Were you using the 3006.102.x firmware? Or the earlier 3004.x firmware?

Several people have reported issues with the Access Intranet option of Guest Network Pro not working on stock Asus 3006 firmware. Seems like it might have carried over to the Asus-Merlin firmware. When you setup your Guest Network Pro profile did you enable or disable the option "Use same subnet as main network"?

As a troubleshooting step, delete the existing Guest Network Profile and create a Customized Network profile with Use same subnet as main network disabled and Access Intranet enabled and see if you can access main LAN clients from the Guest Network Pro profile's clients. On stock it worked with this method (Customized Network), see this post.

Post edited



[inakaya]

@bennor - Dirty upgrade from 3004.388.8_4 to 3006.102.4.

It's the "built in" IoT Network rather than Guest but will try configuring a new one as you suggest and report back....thanks!



[bennor]

@bennor - Dirty upgrade from 3004.388.8_4 to 3006.102.4. It's the "built in" IoT Network rather than Guest but will try configuring a new one as you suggest and report back....thanks!

Just tried a quick test on a RT-AX86U Pro (3006.102.4) that has a Guest Network Pro IoT Profile created that has Use same subnet as main network disabled and Access Intranet (Main Network) enabled, and the IoT client could access/ping several main LAN clients (both a wired client and a WiFi client). And a main LAN client could ping that Guest Network Pro IoT client.



[madre]

Dirty update from 3006_102.4_beta3 on a GT-AXE16000 and everything seems to work fine except Guest Network Pro.
I am also not able to create a guest network with intranet access.
I need a Guest Network Pro VPN Network that can connect to the main network and it does not work.
I have gone through the process as described by @bennor with no results.



[bennor]

I need a Guest Network Pro VPN Network that can connect to the main network and it does not work.
I have gone through the process as described by @bennor with no results.

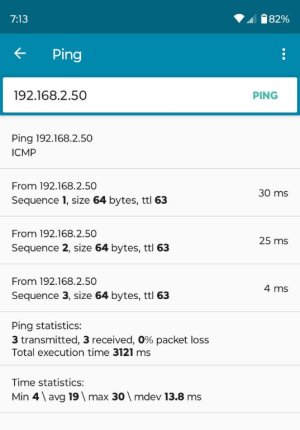

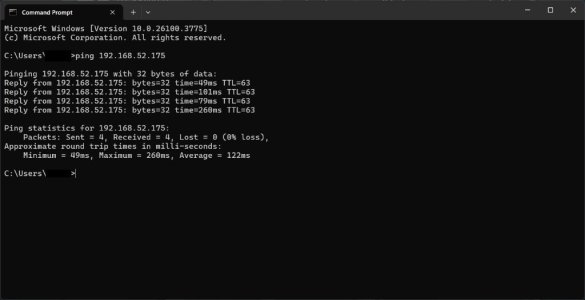

I did not enable, nor do I use, VPN on my Guest Network IoT profiles. All I can say is that the Access Intranet is working in my setup. I have two Guest Network Pro IoT profiles, both configured with Use same subnet as main network set to disable. Each IoT profile is configured for a single WiFi band (one for 2.4 GHz the other for 5 Ghz). I do not have Smart Connect enabled on my main WiFi bands. The attached images show that a Guest Network Pro WiFi client (192.168.52.175) can ping a wired main LAN client (192.168.2.50) and vice versa. And the IoT indicates Main LAN is selected for Access Intranet.

When Access Intranet is disabled (Main LAN unchecked) neither subnet can access the other.



[leonftw]

Just updated my GT-AX6000. Excellent firmware -- thank you! Did a factory reset and all is well. The only bug I found is that I'm using IPv6 Passthrough since my ISP (Verizon 5G Home) requires it. Under the IPv6 System Log, it shows "IPv6 Connection Type -- Disabled". IPv6 passthrough is working as expected so this seems like a bug in the interface.

Also to note, Asus has fixed the DHCP bug with very short WAN lease times (Verizon 5G Home has a 60 second WAN lease time!). This was last year in one of the fall official releases. DHCP has been rock solid since then (knock on wood!)

Thanks!



[dave14305]

The only bug I found is that I'm using IPv6 Passthrough since my ISP (Verizon 5G Home) requires it. Under the IPv6 System Log, it shows "IPv6 Connection Type -- Disabled".

I don’t see that it ever showed anything besides “Disabled” when in Passthrough mode. I suppose there is nothing to show in that mode.

asuswrt-merlin.ng/release/src/router/httpd/data_arrays.c at 0c35adea7e346e27c9921cf0ae54c87460a625be · RMerl/asuswrt-merlin.ng

Third party firmware for Asus routers (newer codebase) - RMerl/asuswrt-merlin.ng

github.com



[Muscless]

RT-BE88U is still bugged for Bandwidth Monitor (Apps Analysis On) & Traffic Analyzer - Statistic.

It only started to happening in the previous version as well as this version (2006.102.4).

Bandwidth Monitor (Apps Analysis On) - In the past, if i was downloading at 100mbps, it would show 100mbps in real time. Now it takes 3-5 seconds to display which explodes into very high numbers than goes back down to 0 in a second when constant data is being download or upload.

Traffic Analyzer - Statistic - The details are 10 hours behind hence i'm in a GMT+10 time zone. It should currently say 2pm on the right side of the graph but it shows 4am as the latest.

I've done many clean factory resets on both versions where it hasn't fixed these problems.

​



[Morpheus2020]

RT-BE88U is still bugged for Bandwidth Monitor (Apps Analysis On) & Traffic Analyzer - Statistic.

It only started to happening in the previous version as well as this version (2006.102.4).

Bandwidth Monitor (Apps Analysis On) - In the past, if i was downloading at 100mbps, it would show 100mbps in real time. Now it takes 3-5 seconds to display which explodes into very high numbers than goes back down to 0 in a second when constant data is being download or upload.

Traffic Analyzer - Statistic - The details are 10 hours behind hence i'm in a GMT+10 time zone. It should currently say 2pm on the right side of the graph but it shows 4am as the latest.

I've done many clean factory resets on both versions where it hasn't fixed these problems.

​

Bandwidth Monitor is a feature of Trend Micro. Trend Micro on ASUS WiFi7 routers has not been working properly. Perhaps we should expect RMerlin to merge the new GPL source code in the next version?
