Solved GT-AX11000 836.4 Can't use wifi channels 100-144 [Solved AIMesh issue]

DJones

Regular Contributor
As the title says on version 836.4 model gt-ax11000 and can't use channels 100-144. Not sure if that's a limitation of AiMesh or not but I would like to move my backbone to UNII-2. But also can't move radio 1 to UNII-2 so something is preventing me from using that whole band.

Channels 52-64 are not usable unless 160Mhz is enabled, but even then you have to have control channel auto or 36 otherwise it only actually allows 20Mhz.

Extension channel can't be changed regardless of which channel bandwidth I'm set to locked on auto.

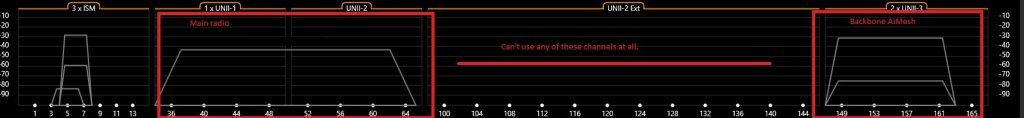

wifi issue.jpg

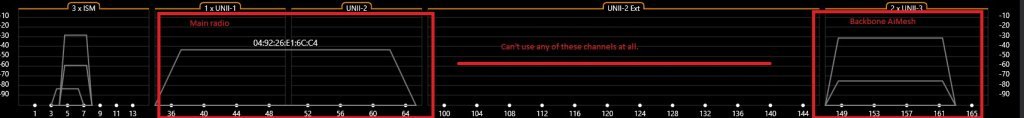

wifi issue2.jpg


wifi issue3.jpg


EDIT: removed my ai mesh to verify. Radio 2 gets the use of 100-161 with mesh unused. Radio 1 is still limited to 36-64. But I assume because they spit the radios to be grouped that way. Never the less throughput on Aimesh is limited as it maybe doesn't use ODFMA UL/DL, and it doesn't get access to 160MHz.

Set my main router to not use Aimesh with the node and have the backhaul on radio 1 @ 160Mhz with the node running as repeater bridge. Now getting a link speed of 2161.8 Mbps instead of 1441 Mbps which is what I get on AiMesh.

Disabled spanning tree protocol as well which might slow down the lan ports on the node.

Need to do further testing but judging by the improvement to the link speed my file transfer speed might be improved from the slow 40MBps although link speed doesn’t mean you’ll get that in transfer speed, but still it’s a larger band.


Attachments

  • wifi issue.jpg
    wifi issue.jpg
    29.7 KB · Views: 49
  • wifi issue.jpg
    wifi issue.jpg
    29.1 KB · Views: 54
Last edited:

KingBravery

Senior Member
Hope Asus can add features to make wireless backhaul have more configuration like able to choose which wifi to use as backhaul instead of making all backhual only connect to 5Ghz-2 main router...


DJones

Regular Contributor
Yeah limiting control on region approved channels I can’t understand it. I would also like to have access to the wireless menu options on repeater mode so I can actually customize the node’s wifi settings like which channel the repeating wifi is on as it’s not choosing the same channels. UNII-2 uses DFS so maybe theirs a risk of channels being limited in radar zones? But still. Not letting you chose which radio is the backhaul is frustrating.

Why does wifi options need to be disabled in any operation mode other then router? I could use WDS but since it’s insecure and can’t use WPA2/3 I wouldn’t risk it.

I can probably modify wifi settings if I ssh into the node, but that’s a very round about way to bypass what the gui should already allow.

@ASUSWRT_2020

Last edited:

DJones

Regular Contributor
Seems some of the settings do stick well others won't like on the node you can't change the backhaul to be on two different 5ghz channels connecting to your router and repeating the signal to a different channel. You also can't seem to change 2.4ghz to 40Mhz width.

So i'm not sure if the hidden gui is purely placebo or not or if some of the settings do stick.



Messing with the settings can also create visual bugs, referencing things like backhaul you'd normally see if you were the router not the node. But flipping between radio pages fixes the issue.

Last edited:

L&LD

Part of the Furniture
Currently, while using AiMesh, many settings are not changeable. This is because AiMesh is hardwired to work (and expected to work) that way.

If you need full control, use AP mode instead.


DJones

Regular Contributor
Currently, while using AiMesh, many settings are not changeable. This is because AiMesh is hardwired to work (and expected to work) that way.

If you need full control, use AP mode instead.
Using repeater mode now. As I cannot be wired in on the node. But wanting further options for repeater mode now... and somewhat breaking out of the normal gui.

Curiously can also access and use wifi radar on the node once i get into advance settings.

wifi radar.jpg


Attachments

  • wifi radar.jpg
    wifi radar.jpg
    63.7 KB · Views: 42

L&LD

Part of the Furniture
Repeater mode has the same limitations.



DJones

Regular Contributor
Repeater mode has the same limitations.


Maybe so but this adventure as given me a few extra settings to tweak (placebo? idk), and wifi radar & guest network which you don't have access to normally. Might not be designed to do this and might not change everything but doesn't seem everything thats hidden is hardwired. https://192.168.x.x:8443/Guest_network.asp



Edit: Apparently trying to change settings you get a nice NOT SUPPORT where the apply button is under guest network. :p oh well.

Last edited:
