ASUS TUF-4200 Unstable connection compared to old TP-Link

  • SNBForums Code of Conduct

    SNBForums is a community for everyone, no matter what their level of experience.

    Please be tolerant and patient of others, especially newcomers. We are all here to share and learn!

    The rules are simple: Be patient, be nice, be helpful or be gone!

Hedgehog

New Around Here
Hello guys. I have an issue with unstable connection to ASUS TUF-4200 over 2.4 GHz network. For the time being I do not care about 5GHz one.

To put it simply, where TP-Link TL-WR850N keeps stable connection most of the time, connection to ASUS TUF-4200 keeps dropping a couple of timers per hour, which prevents me from working from home.

My goal: not to fix every issue in the world, but to make ASUS TUF-4200 perform at least on par with WR850N.

Background:
When I do any comparisons, both mentioned routers are located at the same spot in the middle of my house with all antennas pointed upwards. Client that has connection issues is located in the same horizontal plane as the router.
Device I am connecting to the routers uses this: Intel Dual Band Wireless-AC 7265, which is mentioned here. My driver version is 19-something and this article does recommend 20-something plus. I am however unable to install them because after installing latest intel driver package (23.20.0), it still installs only version 19-something for my device.

What router's log says when my device disconnects? Nothing specific Deauth Reason Code 1. Sometimes connection is briefly lost, but log shows literally nothing at all.

My ASUS TUF-4200 Settings (Mostly default):
Latest firmware (3.0.0.4.388_32464-g275a7df)
I disabled smart switching between 5 and 2.4GHz networks (which had no effect on my situation) and disabled Roaming Assistant, which sometimes contributed to my issue by disconnecting devices, even though I do not have any mesh devices my devices could reconnect to.
Channel bandwidth, 40MHz control channel 13. Switched to those to avoid conflicts, but this didn't really affect anything.

TP-Link TL-WR850N Settings
Mostly stock settings on stock firmware (0.9.1 0.1 v0283.0 Build 171122 Rel.32588n). Mode 11bgn mixed, channel auto, Channel bandwidth auto (which always results in 40MHz)


Trying to solve this for a couple of weeks already. Any insight on this issue?

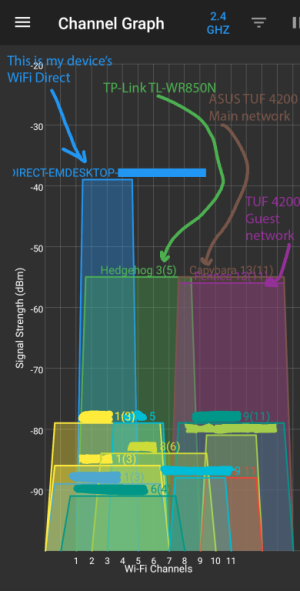

Edit: on the attached image, I am checking networks with my phone while standing near the client device that has connection issues. That's why its WiFi direct appears so strong.


Attachments

  • NETWORKS.png
    104.2 KB · Views: 24
Last edited:
Set channel bandwidth to 20MHz and test again.

I had it on AUTO before, which resulted in 20MHz selected. It was pretty much the same, but this was prior to me disabling Roaming Assistant. So I will try again tomorrow during work, to test in real-world scenario.

Still, even if it works good and stable, I would like to have it on 40MHz same as TP-Link. Also, selecting 20MHz does not result in any more signal strength.

Last edited:
Did you have any usb3 device plugged to the router? If so change them to usb2 setting in the router.
I do have it set to usb 3.0, but it did not have anything in it at the time of my attempts to make it work. I will let it sit at 2.0 anyway. I'll be very surprised if this is the culprit though.

Hey guys. So I narrowed down the issue a bit. Today I did switched to 20MHz, but since I don't believe this is an issue since TP-Link is stable at 40MHz I also decided to switch an adapter. So temporarily instead of Intel Dual Band Wireless-AC 7265 I've used TP-Link T2U Nano adapter. And guess what - connection was stable! So it appears that "Intel Dual Band Wireless-AC 7265" may be a culprit.
As I mentioned before, ASUS settings do mention that this adapter works bad with WiFi6 routers. There's even an option to disable AX protocol. They recommend drivers version 20+ to fix these issues, but I am still yet to find those. But from my today's test it appears that this Intel adapter not only doesn't work right with WiFi6, but with WiFi5 as well. This can explain why it worked stable with TP-Link router - because router only supports wifi4...
I will do additional tests tomorrow using wifi6 usb adapter over 2.4 GHz network to verify 100% what causes my issues.
